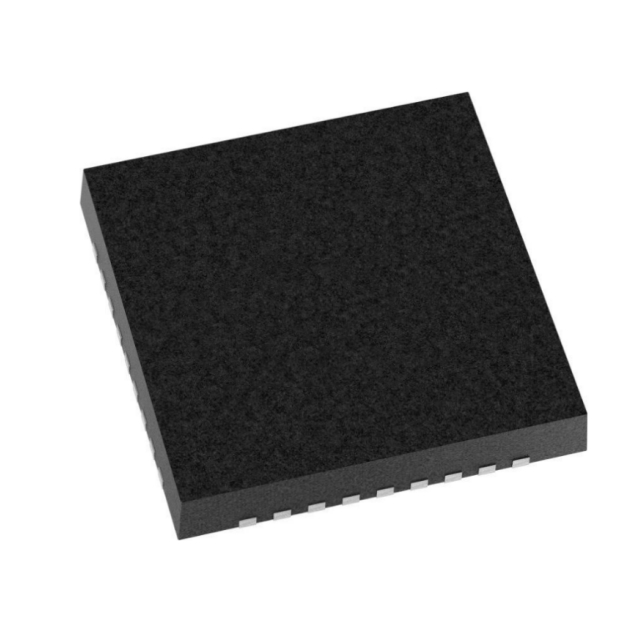

The LAN8672C1T-E/LNX Ethernet PHY transceivers are compact, low-power, single-port 10BASE-T1S Ethernet physical layer transceivers. Designed to the IEEE Std 802.3cg-2019™ specification, these devices provide 10Mbit/s half-duplex transmit and receive functionality over a single balanced-pair medium, such as unshielded twisted pair (UTP) cable. Designed for applications requiring extended temperature range (-40°C to +125°C). The device also meets industrial EMC and EMI requirements. A single power supply and simple analogue front-end simplify its integration into small footprint applications.

Features

● High-performance 10 BASE-T1S Ethernet PHY

● Designed to comply with IEEE Std 802.3cg-2019™ standard

● 10 Mbit/s (over a single balanced pair)

● Half-duplex point-to-point link break, at least 15 metres

● Half-duplex multi-drop hybrid segmentation, up to 25 metres, at least 8 PHYs

● Media Independent Interface (MII) and Simplified Media Independent Interface (RMII)

● 2.5MHz MII clock mode

● 50MHz RMII clock mode

● Serial Management Interface (SMI) for fast access to registers

● Full support for status interrupts

● Carrier Sense Multiple Access/Collision Detection (CSMA/CD) media access control

● Extended temperature range: -40°C to +125°C

Applications

● Sensor/actuator networks operating at high bandwidths

● Microphone networks provide audio streaming for beamforming and hands-free microphones

● Backplane communications

● Industrial control cabinets and machine controls

● Building automation
