The USB7016/KDX USB interface ICs are low-power, OEM-configurable, USB 3.2 Gen 1 hub controllers with six downstream ports.The USB7016/KDX interface ICs are fully compliant with the Universal Serial Bus Revision 3.2 specification and the USB 2.0 Link Power Management Addendum. These ICs are standard USB 3.2 Gen 1 hubs with native basic Type-C support and integrated CC logic on downlink port 1. The USB7016/KDX ICs support OEMs in configuring their systems using Configuration Straps. Applications include standalone USB hubs, laptop charging docks, PC motherboards, PC monitor charging docks, and multi-function USB 3.2 Gen 1 peripherals.

Product Features

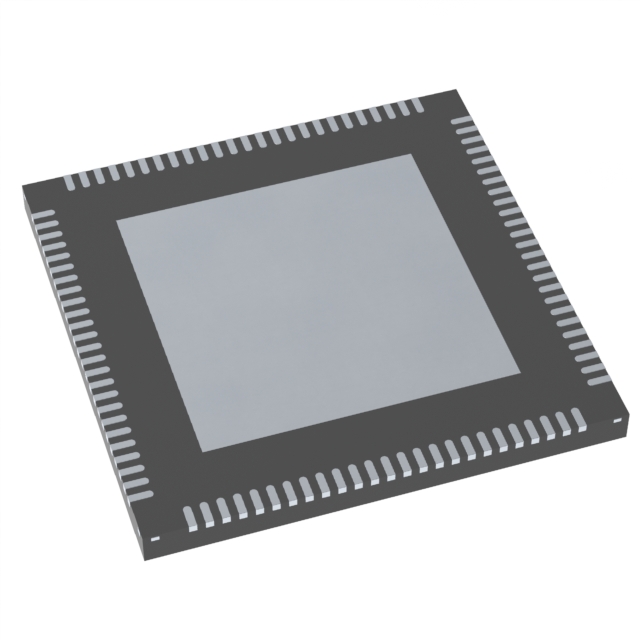

USB7016 in RoHS-compliant 100-pin QFN package

USB 3.2 compliant (Gen 1 operation)

USB 2.0 compliant (HS, FS and LS operation)

USB Gen1 Type-B upstream ports

Six downstream USB ports: Four Gen1 downstream ports, including one port supporting USB Type-C and two USB 2.0-only downstream ports

All downstream ports support individual port power and overcurrent detection

All downstream ports have battery charging enabled via battery charging selector shunts J10 and J14. (BC1.2 or SE1, 2.1A maximum per port)

On-board SPI flash memory for external firmware downloads

Powered from a single-voltage (+12.0V, regulated) external supply

On-board 25 MHz crystal or oscillator inputs

Single on-board +5.2V/15A, +3.3V/0.5A, +1.2V/2A regulator

Port power, SPI FLASH activation, reset and regulator output LEDs

Bridge Peripheral Functions: USB to UART (CDC), USB to I2S™ Audio Codec, USB to I2C
