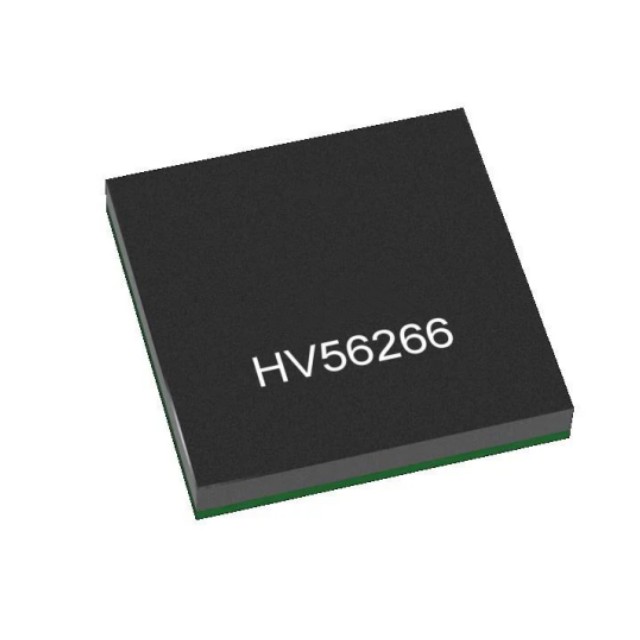

The HV56266T-E/2PW IC is an AECQ100 rated, 300V High Voltage Amplifier integrated circuit. The device operates on a 300V high voltage supply and a 5.0V low voltage supply. Amplifiers input voltage range from 0V to 3.3V and output swing ranges from 1.0V to VPP – 5V with a 500μA sink/source current (maximum) and 270μA (typical) capability. The HV56266 is designed for maximum performance with minimal high voltage current. The high voltage current for each channel is less than 200 μA.

Features

• Single High Voltage Amplifier

• 100V-300V Supply Voltage

• 295V Maximum Output Voltage Swing

• Wide Adjustable Gain

• 30V/V (minimum) to 90V/V (maximum)

• 900 kHz Gain Bandwidth Product

• Minimum Slew Rate of 3 V/µs with 15 pF Load

• AEC-Q100 Qualified

• 4 x 4 mm BGA Package for Commercial Applications

Application

• MEMS Driver

• Laser Beam Steering

• Haptic Driver
