The PCA9601DPZ is designed to isolate I2C-bus capacitance, allowing long buses to be driven in point-to-point or multipoint applications of up to 4000 pF. The PCA9601 is a higher-speed version of the P82B96 and a higher drive version of the PCA9600 that allows many more Fast-mode Plus (Fm+) slaves on remote daughter cards in applications with temperature range of 0 °C to 85 °C.

Features and benefits

• Bidirectional data transfer of I2C-bus signals

• 15 mA SX/SY sink capability yields 5 V Fm+ bus rise time with 470 pF loads

• Isolates capacitance allowing > 400 pF on SX/SY side and 4000 pF on TX/TY side

• 1 MHz operation on up to 20 meters of wire (see AN10658)

• Supply voltage range of 2.5 V to 15 V with I2C-bus logic levels on SX/SY side independent of supply voltage

• Splits I2C-bus signal into pairs of forward/reverse TX/RX, TY/RY signals for interface with opto-electrical isolators and similar devices that need unidirectional input and output signal paths

• Low power supply current

• ESD protection exceeds 3500 V HBM per JESD22-A114, and 1400 V CDM per JESD22-C101

• Latch-up testing is done to JEDEC Standard JESD78 which exceeds 100 mA

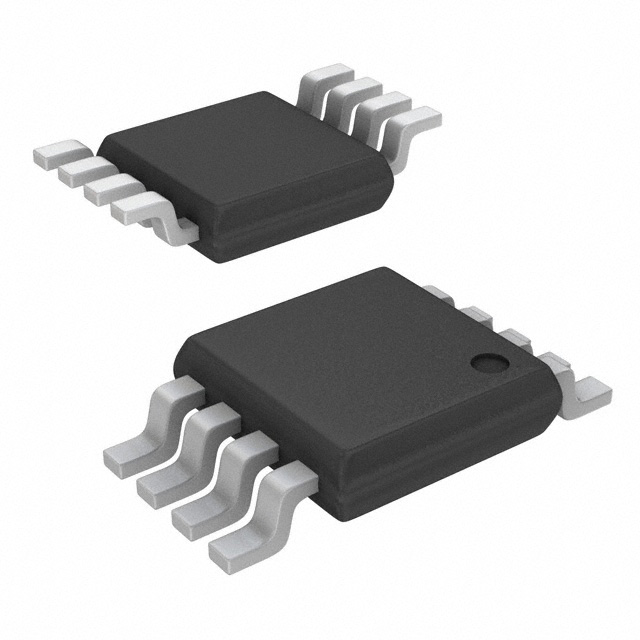

• Packages offered: SO8 and TSSOP8 (MSOP8)

Applications

• Interface between I2C-buses operating at different logic levels (for example, 5 V and 3 V or 15 V)

• Interface between I2C-bus and SMBus (350 μA) standard or Fm+ standard

• Simple conversion of I2C-bus SDA or SCL signals to multi-drop differential bus hardware, for example, via compatible PCA82C250

• Interfaces with opto-couplers to provide opto-isolation between I2C-bus nodes up to 1 MHz

• Long distance point-to-point or multipoint architectures
