The LT8391AIFE is a synchronous 4-switch buck-boost LED controller that regulates the LED current based on an input voltage that is above, below or equal to the output voltage. The proprietary peak buck/peak boost current mode control scheme supports adjustable and synchronisable 600kHz to 2MHz fixed frequency operation or internal 25% delta spread spectrum operation for reduced EMI. With 4V to 60V inputs and 0V to 60V outputs, and support for seamless, low-noise transitions between operating regions, the LT8391AIFE is an ideal choice for LED driver and battery charging applications in automotive, industrial and LED driver and battery charging applications in battery-powered systems.

The LT8391AIFE provides internal (up to 128:1) and external (up to 2000:1) LED current PWM dimming with high-end PMOS switches.

Features

Four-switch single inductor architecture allows VIN to be above, below or equal to VOUT

Up to 95% efficiency (at 2MHz)

Proprietary peak buck-peak boost current mode

Wide VIN range: 4V to 60V

Wide VOUT range: 0V to 60V (51V LEDs)

±3% LED current accuracy

2000:1 external and 128:1 internal PWM dimming

High-side PMOS PWM switching driver

No upper MOSFET refresh noise in buck or boost

Adjustable and synchronisable frequency range: 600kHz to 2MHz

Flicker-free extended spectrum for low EMI

Open- and short-circuit LED protection with fault reporting

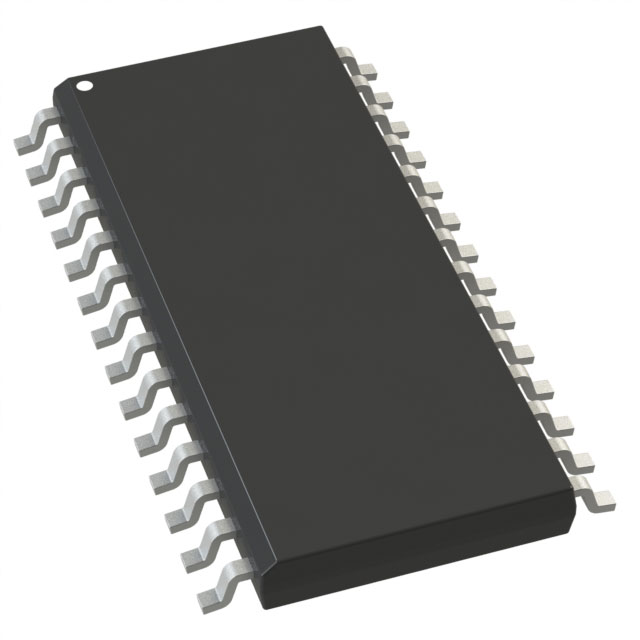

28-pin TSSOP package with exposed pads

AEC-Q100 certified for automotive applications

Applications

Automotive headlamps/driving lights

High-frequency LED lighting
