The LT8391AEFE is a synchronous 4-switch buck-boost LED controller that regulates LED current based on an input voltage that is above, below or equal to the output voltage. The proprietary peak buck/peak boost current mode control scheme supports adjustable and synchronisable 600kHz to 2MHz fixed frequency operation or internal 25% delta spread spectrum operation for reduced EMI.

Product Attributes

Product Category: LED Lighting Drivers

Series: LT8391A

Mounting Style: SMD/SMT

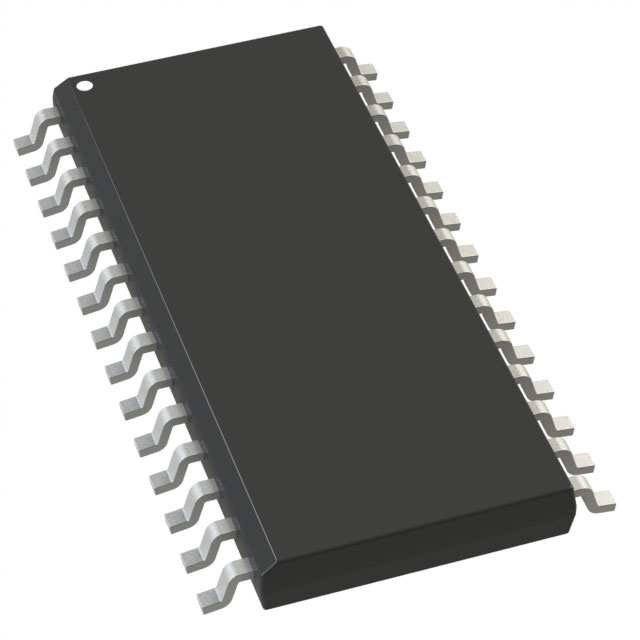

Package / Case: TSSOP-28

Number of outputs 1 output

Output Current: 1.5 A

Input Voltage (Min): 4 V

Input Voltage (Max): 60 V

Topology: Boost, Buck

Operating frequency: 600 kHz to 2 MHz

Output voltage: 60 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Features: PWM dimming, open LED protection

Input voltage: 4 V to 60 V

Number of Channels: 1 channel

Factory Package Quantity: 50

Supply Current - Max: 2.8 mA

Unit weight: 2.191 g

Applications

Automotive headlights/driving lights

High frequency LED lighting
