The IGD15N65T6 650V TRENCHSTOP™ IGBT6 and the Field Termination IGBT are designed to meet the specific requirements of motor drivers in household appliance fans, compressors, commercial sewing machines and pumps. The 650V IGBT is optimized for minimum switching losses, especially in systems with switching frequencies up to 30kHz. The IGBT uses a fast soft recovery reverse parallel Rapid 1 diode, so the total loss is extremely low.

Specifications

IGBT type: trench type field cut-off

Voltage-emitter breakdown (Max) : 650 V

Current - Collector (Ic) (Max) : 30 A

Current-collector pulse (Icm) : 57.5A

Vce(on) (Max.) for different Vge and Ic: 1.9V@15V, 11.5A

Power - Max. : 100 W

Switching power: 230µJ (on), 110µJ (off)

Input type: Standard

Grid charge: 37 nC

Td (On/off) value at 25°C: 30ns/117ns

Test conditions: 400V, 11.5A, 47 ohms, 15V

Operating temperature: -40°C ~ 175°C (TJ)

Mounting type: Surface mount type

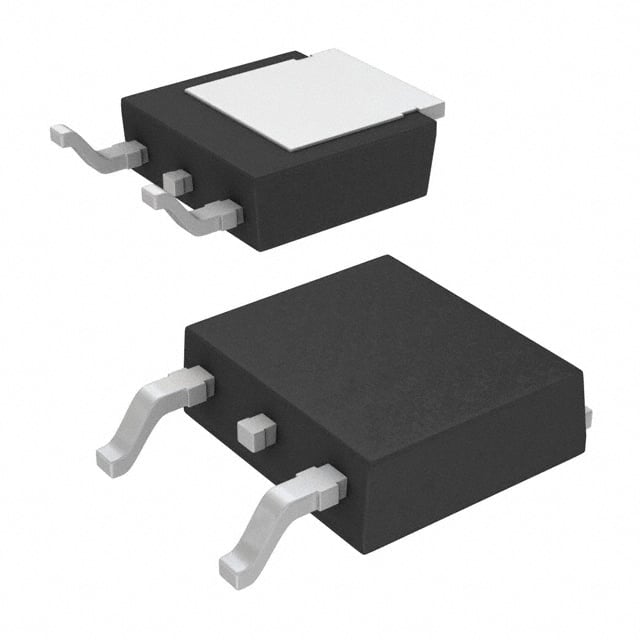

Package/housing: TO-252-3, DPak (2 leads + connectors), SC-63

Supplier device package: PG-TO252-3

Basic product number: IGD15N65
