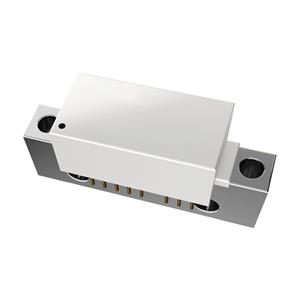

The ADCA3992AMLZ is a high-gain, power multiplier hybrid amplifier optimised for a wide range of bias conditions to improve power efficiency and customer flexibility. Ideal for use in digital pre-distortion (DPD) node designs to maximise power savings. The device features a gallium arsenide (GaAs) mimetic high electron mobility transistor (pHEMT) die and a gallium nitride (GaN) HEMT die to achieve very high RF outputs with composite power up to 76.8 dBmV and virtual levels up to 67 dBmV. The DC current and supply voltage can be externally adjusted to achieve optimal distortion performance and power consumption over a range of output levels.

Product Attributes

Frequency: 45 MHz ~ 1.218 GHz

Gain: 26.7 dB

Noise Figure: 4.5 dB

RF Type: CATV

Voltage - Supply: 24V ~ 34V

Current - Supply: 535 mA

Test Frequency: 1.218 GHz

Mounting Type: Chassis Mount

Package/Shell: SOT-115J

Supplier Device Package: SOT-115J

Applications

● 45 MHz to 1218 MHz cable television (CATV) infrastructure amplifier systems

● Remote physical layer (PHY) and fibre depth nodes

● DOCSIS® 3.1 compliant
