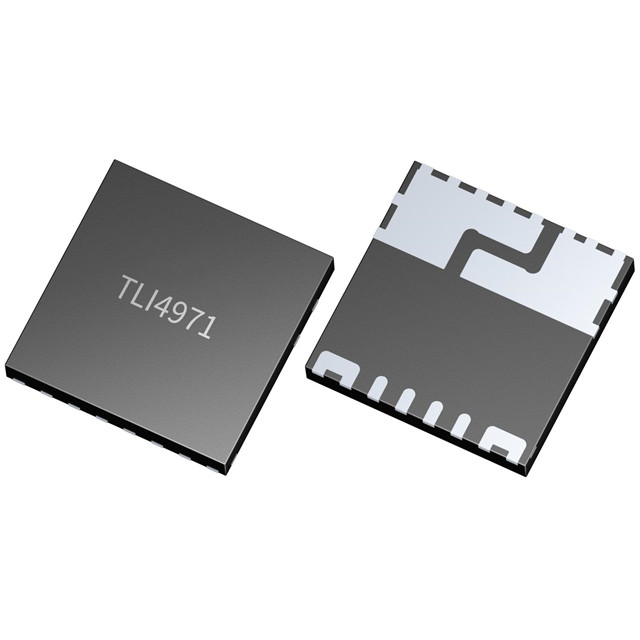

The TLI4971-A025T5-E0001 is a high-precision miniature coreless magnetic current sensor for AC and DC measurements with analog interfaces and two fast overcurrent detection outputs. The sensor is equipped with an internal self-diagnostic function. Typical applications are electric drives and general purpose inverters.

Specifications

Used for measurement: AC/DC

Sensor type: Hall effect, open loop

Current - Detection: 25A

Number of channels: 1

Output: ratio, voltage

Sensitivity: 48mV/A

Frequency: DC ~ 240kHz

Linearity: ±2.25%

Accuracy: ±3.45%

Voltage - Power supply: 3.1V ~ 3.5V

Response time: 250ns

Current - Power supply (Max.) : 25mA

Operating temperature: -40°C ~ 105°C

Polarization: unidirectional

Mounting type: Surface mount type

Package/housing: 8-PowerTDFN

Typical applications include, electric drives, universal inverters, photovoltaic inverters, chargers, current monitoring, overload and overcurrent detection.
