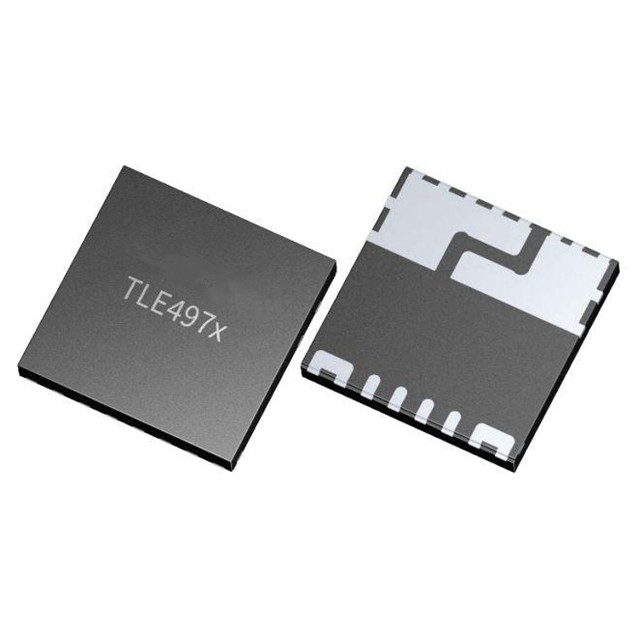

The TLE4971-A075T5-U-E0001 is a high-precision miniature coreless magnetic current sensor for AC and DC measurements with analog interfaces and two fast overcurrent detection outputs. Infineon's proven and reliable single-chip Hall technology enables highly accurate, highly linear current measurements up to ±120A at full scale. The sensor is equipped with internal self-diagnosis function.

Features

• Integrated current rail, 220µΩ insertion resistance for ultra-low power consumption

• Parasitic inductance less than 1nH

• Minimum dimensions, 8x8mm, lead end detection

• High-precision, scalable DC and AC current detection

•210kHz bandwidth, suitable for various applications

• Very low sensitivity error over the entire temperature range

• Current functional isolation up to 1150V peak voltage

• Provide ISO26262 compliant documentation

TLE4971 for AC and DC current measurement applications:

• Car Charger (OBC)

• Drive/servo/Motor control/inverter /eScooter/ Electric bicycle /LEV/EESM (External Excitation Synchronizer)

• Current monitoring

• Overload and overcurrent detection
