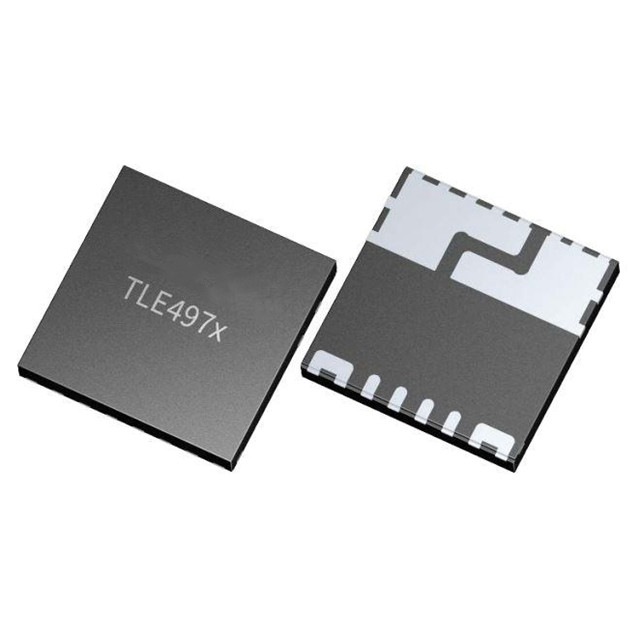

The TLE4973-AE35S5-S0001 is a high precision miniature coreless magnetic current sensor for AC and DC measurement with analog interface and fast overcurrent detection output. Negative effects (saturation, hysteresis) known from open-loop sensors using flux concentration technology are avoided. The differential measurement principle can achieve good stray field suppression when operating in harsh environments.

Features

• High-precision, scalable DC and AC current detection

• Full scale up to ±34 mT for current measurements above 1000 A

•5 V supply voltage

• Configurable differential analog output (including ratio measurement options)

• The ISO 26262 safety elements that meet ASIL B safety requirements are out of context

• Small size for high power density

• Very low sensitivity error with temperature and life

• Excellent offset stability over the entire temperature range and service life

• Differential sensor principle ensures excellent stray magnetic field suppression

• High bandwidth provides fast response time and low phase delay

• Overcurrent detection with configurable thresholds (maximum detection time <1.0µs)

EEPROM with integrated charge pump for in-system programming and off-line calibration

No additional circuitry is required

• Different packaging solutions for optimal system integration in different cabling schemes

• Digital control and diagnostic interface. It provides: temperature readings, safety status readings, read/write programming access to internal EEPROM, control diagnostic mode Read/write programming access to internal EEPROM, control diagnostic mode

• Pre-calibrated over the temperature range, in-system down-line calibration is possible to

Compensate for system-level errors

Typical applications include auxiliary electrical drives, overload and overcurrent detection, battery master switches, smart circuit breakers, photovoltaic inverters, current monitoring, and power supplies.
