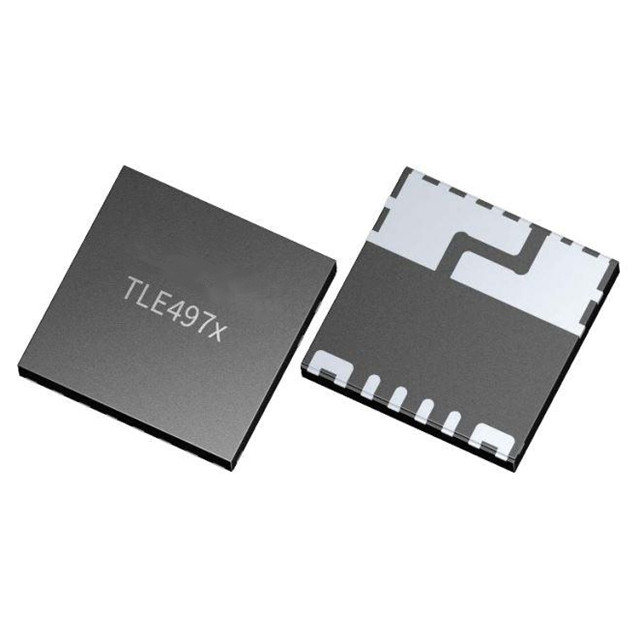

The TLE4973-RE35S5-S0010 is a high-precision miniature coreless magnetic current sensor for AC and DC measurements with analog interface and fast overcurrent detection output. Negative effects (saturation, hysteresis) known from open-loop sensors using flux concentration technology are avoided.

peculiarity

• High-precision, scalable DC and AC current detection

• Full scale up to ±34 mT for current measurements above 1000 A

•5 V supply voltage

• Ratio single-ended analog output

• The ISO 26262 safety elements that meet ASIL B safety requirements are out of context

• Small size for high power density

• Very low sensitivity error with temperature and life

• Excellent offset stability over the entire temperature range and service life

• Differential sensor principle ensures excellent stray magnetic field suppression

• High bandwidth provides fast response time and low phase delay

• Overcurrent detection with configurable thresholds (maximum detection time <1.0µs)

EEPROM with integrated charge pump for in-system programming and offline calibration without additional circuitry

• Different packaging solutions for optimal system integration in different cabling schemes

• Digital control and diagnostic interface. It provides: temperature readings, safety status readings, read/write programming access to the internal EEPROM, diagnostic mode control

• Pre-calibrated over the entire temperature range, in-system down-line calibration is possible to compensate for system-level errors

Typical application

• Primary and auxiliary electrical drives

• Overload and overcurrent detection

• Battery main switch

• Intelligent circuit breaker

• Photovoltaic inverter

• Current monitoring and power supply
