1ED3860MU12M is 2300V single-channel highly flexible isolated gate driver with I2C configurability for DESAT, Soft-Off, UVLO, Miller clamp, TLTO and Fault.

Summary of Features

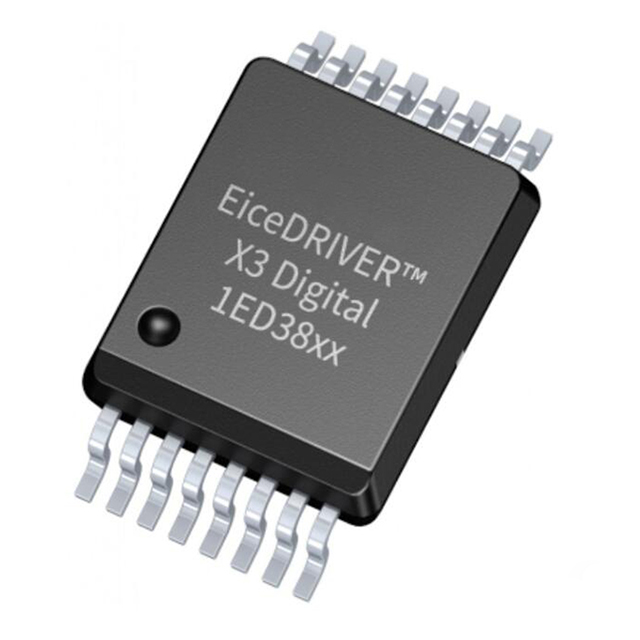

Highly flexible EiceDRIVER™ Enhanced single channel isolated gate driver 1ED38xx family (X3 digital family)

For use with 650 V/1200 V/1700 V/2300 V IGBTs, Si and SiC MOSFETs

2300 V functional offset voltage capable for selected applications

±6 A typical sinking and sourcing peak output current

40 V absolute maximum output supply voltage

Separate source and sink outputs with two-level turn-off

Active Miller clamp

Precise and temperature compensated VCEsat detection (DESAT) with fault output

IGBT soft turn-off after desaturation detection

FLT and RDY status signaling to µController

Parameter adjustment from input side via I2C bus:

Undervoltage lockout (UVLO)

Active Miller clamp

DESAT protection

Soft turn off

Two level turn off

Over temperature shutdown

Applications

EV charging

Motor control and drives

Photovoltaic

Server power supplies

Uninterruptible power supplies (UPS)
