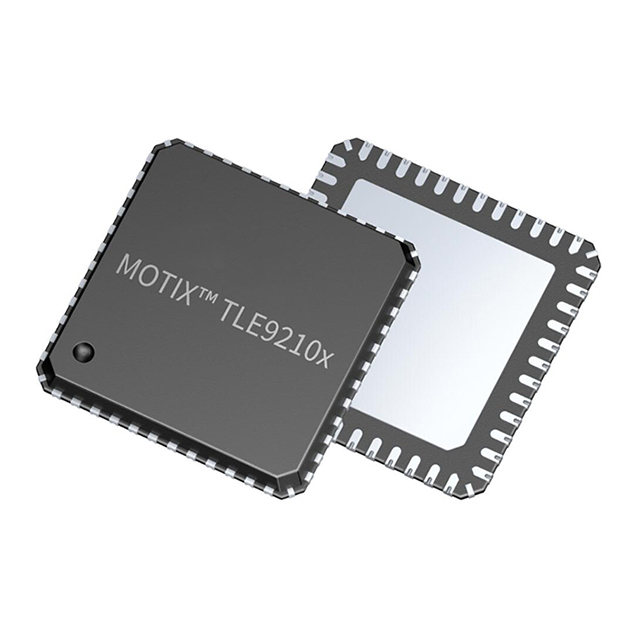

TLE92104-131QX is a MOTIX™ Multi MOSFET Driver IC with an adaptive multi-stage MOSFET gate control. It can drive up to 8 external n-channel MOSFETs and provides a unique Adaptive MOSFET Control concept to eliminate end-of-line calibration to MOSFET characteristic spreads and guarantees an optimized balancing between power dissipation and EMC behavior.

Product Features

Four half-bridge gate drivers for external N-channel MOSFETs

Control of reverse battery protection MOSFET

Adaptive MOSFET gate control

– Improved electromagnetic emission

– Reduced switching losses in PWM mode

24-bit Serial Peripheral Interface

One current sense amplifier with configurable gain

– High-side and low-side capable for protection and diagnosis

Drain-source monitoring for short circuit detection

Overtemperature warning and shutdown

Timeout watchdog

Detailed off-state diagnostic (open load, short circuit to battery or short circuit to GND) via SPI

Three PWM inputs

– High-side and low-side PWM capable

– Active free-wheeling

– Up to 25 kHz PWM frequency

Low current consumption in sleep mode

Leadless power package with support of optical lead tip inspection

Potential Applications

Seat module and extended functions (steering column adjustment, gas pedal adjustment)

Closure systems (e.g. trunk opener, sliding door, sun-roof)

Central door lock

Body control module (cargo cover, washer pump, window lift, wiper…)
