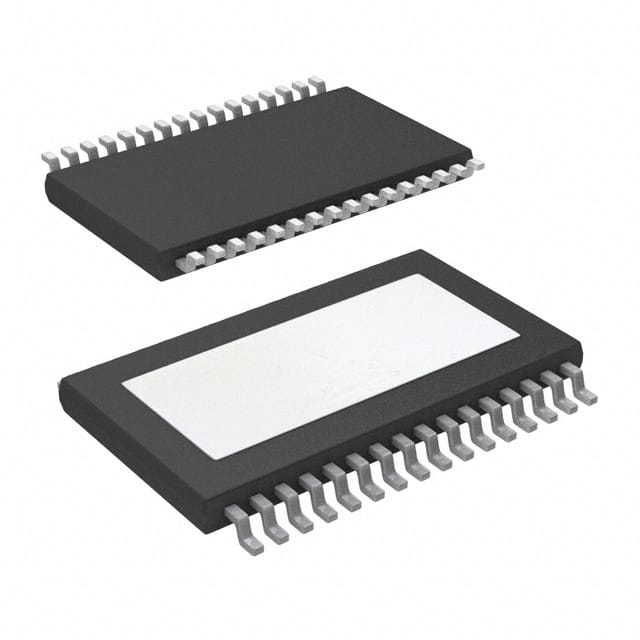

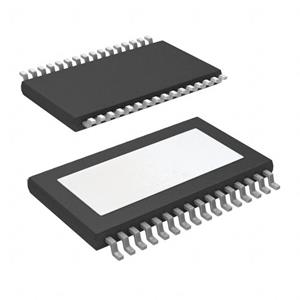

Trade Name:TPS92520QDADRQ1
Data Manual:TPS92520QDADRQ1.pdf
Brand:TI
Particular Year:23+
Package:HTSSOP32
Delivery Date:New and Original
Stock: 14781pcs
The TPS92520QDADRQ1 is a monolithic dual synchronous step-down LED driver with a wide operating input voltage range of 4.5V to 65V that can independently power two strings of LEDs in series. headlamp. Adaptive on-time control provides near-constant switching frequency with a frequency setting range of 100kHz to 2.2MHz, and inductor current sensing and closed-loop feedback for an accuracy of ±4% or more over a wide range of input voltages, output voltages and ambient temperatures.
Features
- Meets AEC-Q100 standards for automotive applications
- Class 1: -40°C to 125°C operating ambient temperature range
- Device HBM classification class H1C
- Device CDM classification class C5
- Providing functional safety
- Documentation to assist in the design of functionally safe systems
- Wide input voltage range of 4.5V to 65V
- Continuous output current of up to 1.6 A with 4% accuracy
- Adaptive on-time averaging current control
- Programmable switching frequency range of 100kHz to 2.2MHz
- Advanced dimming operation
- 10-bit precision analogue dimming
- 10-bit precision internal PWM dimming
- External PWM dimming inputs supported
- Optimised for external shunt dimming (including LED matrix manager)
- Switching cycle-by-cycle overcurrent protection
- Switch overheat protection
- Serial Peripheral Interface (SPI)
- Configurable analogue reference, switching frequency and PWM dimming duty cycle
- Fault monitoring and reporting
- Support for limp-home (LH) and stand-alone mode operation
Applications
- Automotive headlamp and adaptive LED driver modules
