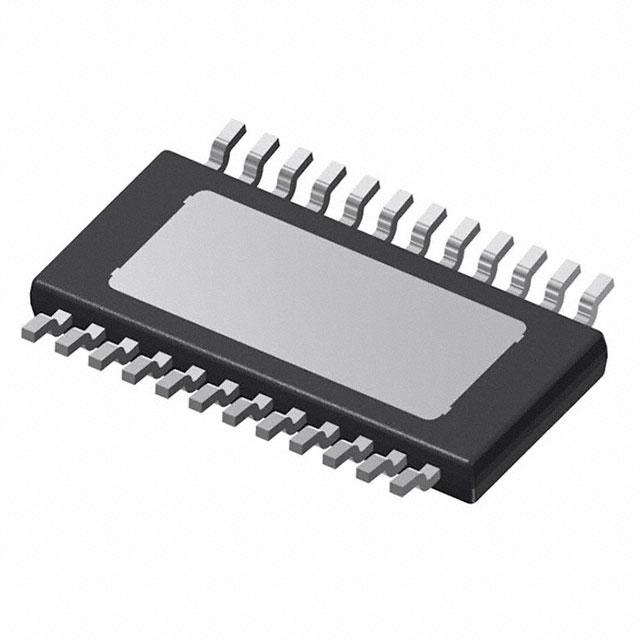

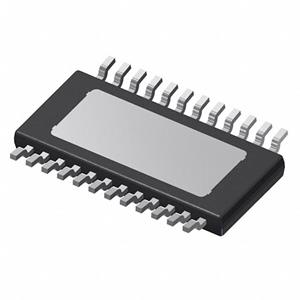

TLE94110ES is a protected ten-fold half-bridge driver designed especially for automotive motion control applications such as Heating, Ventilation and Air Conditioning (HVAC) flap DC motor control. It is part of a larger family offering half-bridge drivers from three outputs to twelve outputs with direct interface or SPI interface.

Features

Ten half bridge power outputs

Very low power consumption in sleep mode

3.3V / 5V compatible inputs with hysteresis

All outputs with overload and short circuit protection

Independently diagnosable outputs (overcurrent, open load)

Open load diagnostics in ON-state for all high-side and low-side

Outputs with selectable open load thresholds (HS1, HS2)

16-bit Standard SPI interface with daisy chain and in-frame response capability for control and diagnosis

Fast diagnosis with the global error flag

PWM capable outputs for frequencies 80Hz, 100Hz and 200Hz with 8-bit duty cycle resolution

Overtemperature pre-warning and protection

Over- and Undervoltage lockout

Cross-current protection

Applications

HVAC Flap DC motors

Monostable and bistable Relays

Side mirror x-y adjustment and mirror fold

LEDs
