Service Telephone:86-755-83294757

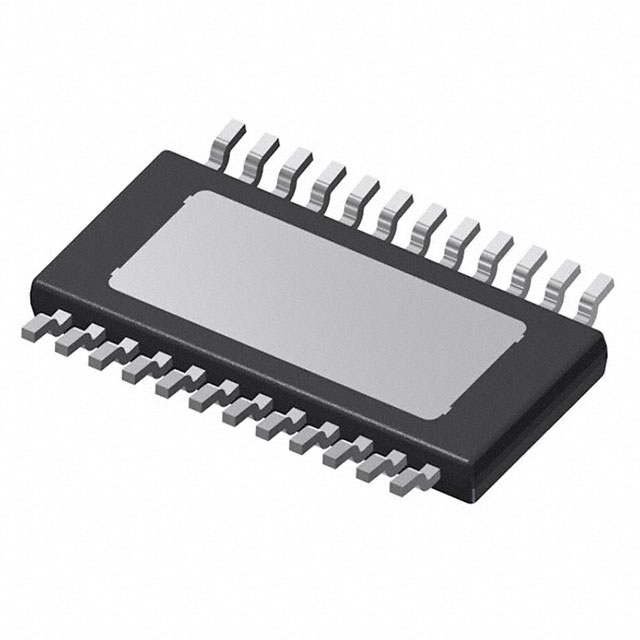

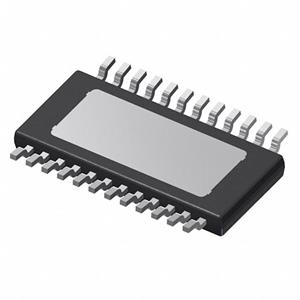

Trade Name:TLE94112ES
Data Manual:TLE94112ES.pdf
Brand:INFINEON
Particular Year:23+
Package:24-TSSOP
Delivery Date:New original
Stock: 2000pcs
TLE94112ES is a protected twelve-fold half-bridge driver designed especially for automotive motion control applications such as Heating, Ventilation and Air Conditioning (HVAC) flap DC motor control. It is part of a larger family offering half-bridge drivers from three outputs to twelve outputs with direct interface or SPI interface.
Features
Twelve half bridge power outputs
Very low power consumption in sleep mode
3.3V / 5V compatible inputs with hysteresis
All outputs with overload and short circuit protection
Independently diagnosable outputs (overcurrent, open load)
Open load diagnostics in ON-state for all high-side and low-side
Outputs with selectable open load thresholds (HS1, HS2)
16-bit Standard SPI interface with daisy chain and in-frame response capability for control and diagnosis
Fast diagnosis with the global error flag
PWM capable outputs for frequencies 80Hz, 100Hz and 200Hz with 8-bit duty cycle resolution
Overtemperature pre-warning and protection
Over- and Undervoltage lockout
Cross-current protection
Applications
HVAC Flap DC motors
Monostable and bistable Relays
Side mirror x-y adjustment and mirror fold
LEDs
