The S6J32GELTNSC20000 is an extension of the existing S6J3200 family with 4-MB Flash, 512-KB RAM, and Ethernet RMII support. The microcontrollers are members of the 55-nm Traveo™ family for clusters and heads-up displays (HUDs). They are available as single-chip solutions to drive complete mid-range instrument clusters. They can control up to six gauges and drive up to two thin-film transistor (TFT) displays with WVGA resolution (854 × 480 pixels each).

Product Attributes

Core processor: ARM® Cortex®-R5F

Core specification: 32-bit single core

Speed: 240MHz

Connectivity: CANbus, CSIO, Ethernet, I²C, LINbus, SPI, UART/USART

Peripherals: DMA, I²S, LVD, POR, PWM, WDT

Number of I/O: 128

Program memory capacity: 4.0625MB (4.0625M x 8)

Program memory type: Flash

RAM Size: 128K x 8

Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V

Data Converter: A/D 50x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

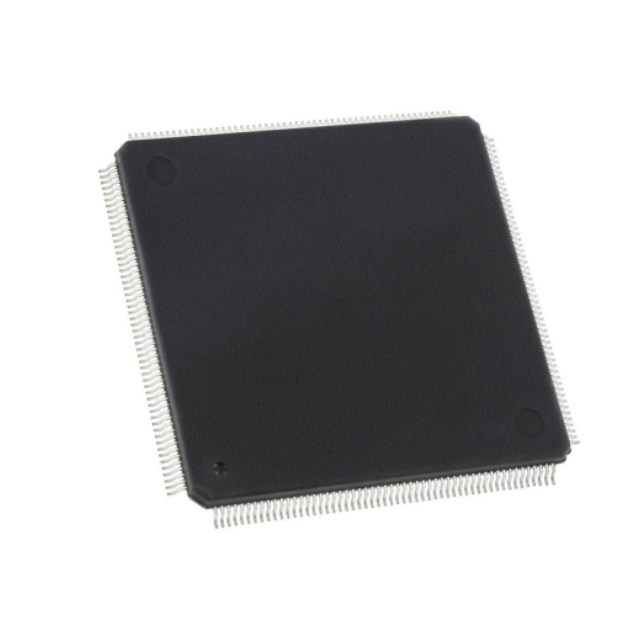

Package/Housing: 216-LQFP Exposed Pad

Supplier Device Package: 216-TEQFP (24x24)
