The CY9BF467RBGL-GK7E1 is a highly integrated 32-bit microcontroller dedicated to embedded controllers, offering high performance and a very competitive cost. These families are based on the Arm® Cortex®-M4F processor with on-chip Flash and SRAM, and feature peripherals such as motor control timers, ADCs and communication interfaces. Peripheral functions such as motor control timer, ADC and communication interfaces (CAN, UART, CSIO, I2C, LIN).

Product Attributes

Core processor: ARM® Cortex®-M4F

Core specification: 32-bit single core

Speed: 160MHz

Connectivity: CANbus, CSIO, I²C, LINbus, UART/USART

Peripherals: DMA, LVD, POR, PWM, WDT

Number of I/O: 100

Programme memory capacity: 800KB (800K x 8)

Program memory type: Flash

RAM Size: 96K x 8

Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V

Data Converter: A/D 24x12b; D/A 2x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

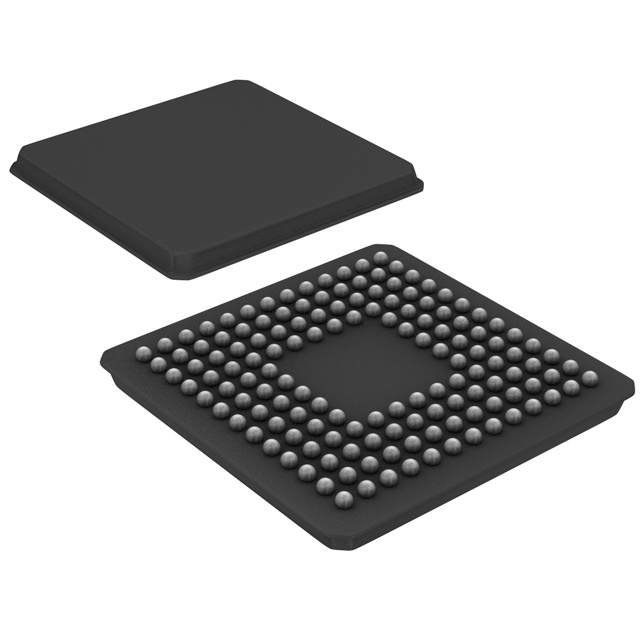

Package/Outside: 144-LFBGA

Supplier Device Package: 144-LFBGA (7x7)
