The CY8C6245AZI-S3D62 performance family of microcontrollers is based on an ultra-low-power 40nm platform combining Arm® Cortex®-M4 and Arm® Cortex®-M0+ CPUs.These devices include low-power Flash technology, programmable digital and analogue resources, and best-in-class CAPSENSE™ technology for touch and proximity applications. The Infineon PSoC 62 performance family of microcontrollers provides security built into the platform architecture with hardware cryptographic accelerators, memory and peripheral protection units. the PSoC 62 is designed for IoT applications such as wearables, smart home, industrial IoT, portable medical devices, and more.

Product Attributes

Core processor: ARM® Cortex®-M0+, ARM® Cortex®-M4F

Core specification: 32-bit dual-core

Speed: 100MHz, 150MHz

Connectivity: CANbus, FIFO, I²C, IrDA, LINbus, MMC/SD/SDIO, QSPI, Smart Card, SPI, UART/USART, USB

Peripherals: Bluetooth, power-down detection/reset, capacitive sensing, DMA, LCD, LVD, POR, PWM, SmartSense, WDT

Number of I/O: 64

Program memory capacity: 512KB (512K x 8)

Program memory type: Flash

RAM Size: 256K x 8

Voltage - Supply (Vcc/Vdd): 1.7V ~ 3.6V

Data Converter: A/D 16x12b SAR, 10b Triangle Integral; D/A 2x7/8b

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

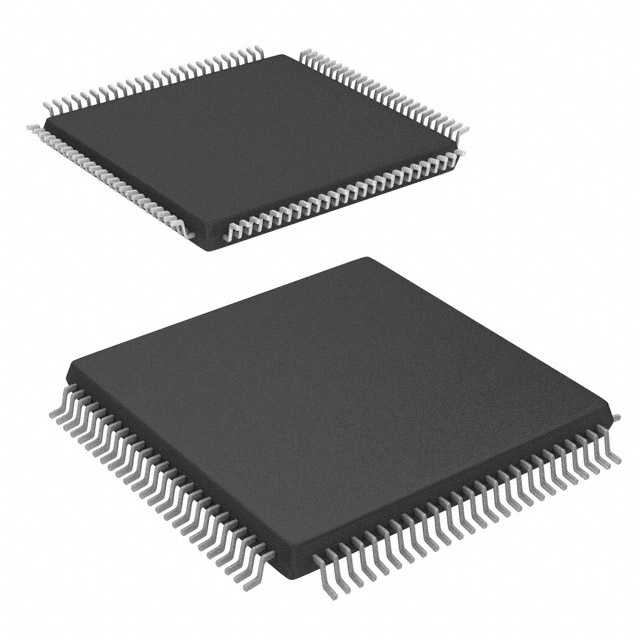

Package/Housing: 100-LQFP

Supplier Device Package: 100-TQFP (14x14)
