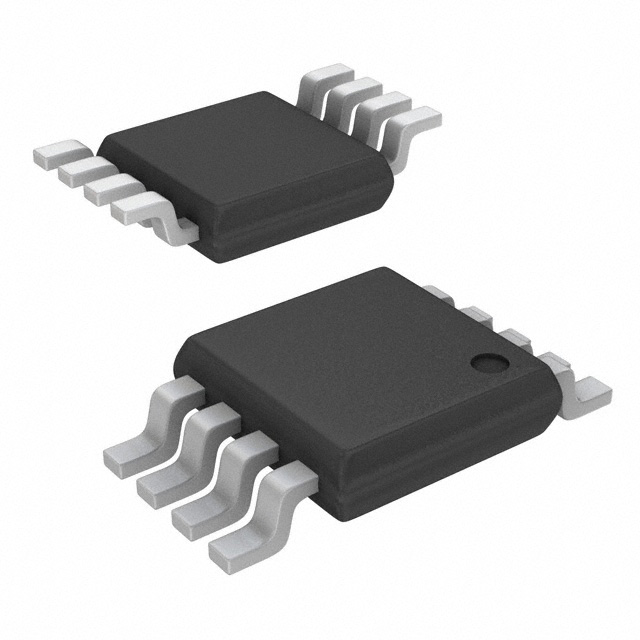

The P82B96DPZ is a bipolar integrated circuit that creates a non-latching, bi-directional logic interface between the normal I2C bus and a range of other bus configurations. It can connect I2C bus logic signals to similar buses with different voltage and current levels.

For example, it can connect a 350 μA SMBus, a 3.3 V logic device, and a 15 V level and/or low impedance line to improve noise immunity on longer buses.

Features

Bidirectional data transfer of I2C bus signals

Isolation capacitance allows 400 pF on the Sx/Sy side and 4000 pF on the Tx/Ty side

Tx/Ty outputs have a 60 mA sink current capability for driving low-impedance or high-capacitance buses

Operating frequency of 400 kHz on at least 20 metres of wire (see AN10148)

2V to 15V supply voltage range, IC bus logic level on the Sx/Sy side is independent of supply voltage

Splits IC bus signals into a pair of forward/reverse Tx/Rx, Ty/Ry signals for connection to optoisolators and similar devices that require unidirectional input and output signal paths.

Low supply current

ESD protection: over 3500V HBM per JESD22-A114, over 250V DIP package per JESD22-A115, 400V SO package MM per JESD22-C101, over 1000V CDM per JESD22-C101

Non-latching (non-latching bipolar processing structure)

Packages available: DIP8, SO8 and TSSOP8

Interface between I2C buses operating at different logic levels (e.g., 5V and 3V or 15V)

Interface between I2C bus and SMBus (350µA) standard

Simple conversion of I2C bus SDA or SCL signals to multipoint differential bus hardware, e.g. via the compatible PCA82C250

Interface with opto-coupler provides opto-electronic isolation between I2C bus nodes up to 400 kHz

Ambient operating temperature: -40°C (min), 85°C (max)

Supply voltage: 2V (min), 15V (max)

Applications

Interface between I2C buses operating at different logic levels (e.g. 5V and 3V or 15V)

Interface between I2C bus and SMBus (350μA) standard

Simple conversion of I2C bus SDA or SCL signals to multi-component differential bus hardware, e.g. via PCA82C250 compatibility

Connection to an optocoupler to provide optical isolation between I2C bus nodes up to 400kHz
