The ADC128D818 I2C system monitor is designed for maximum flexibility. The system monitor can be configured as single-ended and/or pseudo-differential inputs. The on-board temperature sensor combined with the WATCHDOG window comparator and interrupt output pin INT makes it easy to monitor each channel and issue out-of-range alarms. In addition, there is a high performance internal reference that provides a complete solution under the most difficult operating conditions.

Product Attributes

Product Category: Analogue to Digital Converters - ADCs

Series: ADC128D818

Mounting Style: SMD/SMT

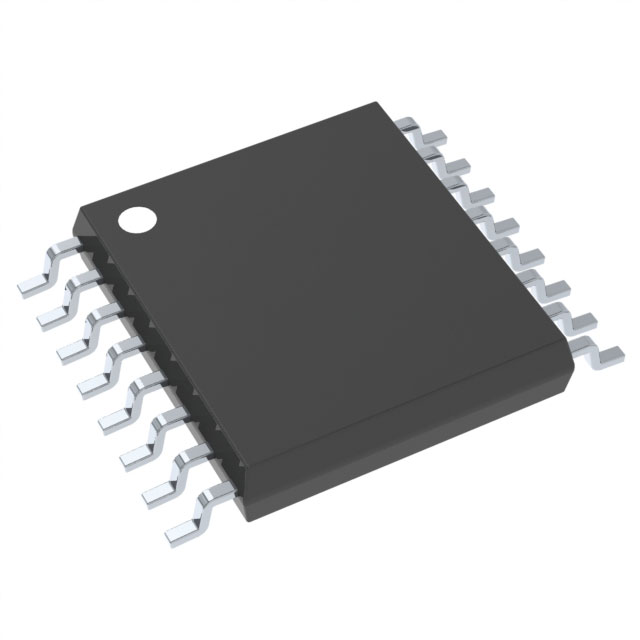

Package / Case: TSSOP-16

Resolution: 12 bit

Number of channels: 8 Channel

Interface type: I2C

Sample ratio: 0.082 kS/s

Input type: Pseudo-Differential/Single-Ended

Architecture: Sigma-Delta

Analogue supply voltage: 3 V to 5.5 V

Digital supply voltage: 3 V to 5.5 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Features: Oscillator, Temp Sensor

Number of Converters: 1 Converter

Operating supply voltage: 3 V to 5.5 V

Power consumption: 2 mW

Product Type: ADCs - Analog to Digital Converters

Reference Type: Internal

Reference voltage: 2.56 V

Factory Package Quantity: 2500

Sub Category: Data Converter ICs

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 3 V

Unit Weight: 63 mg
