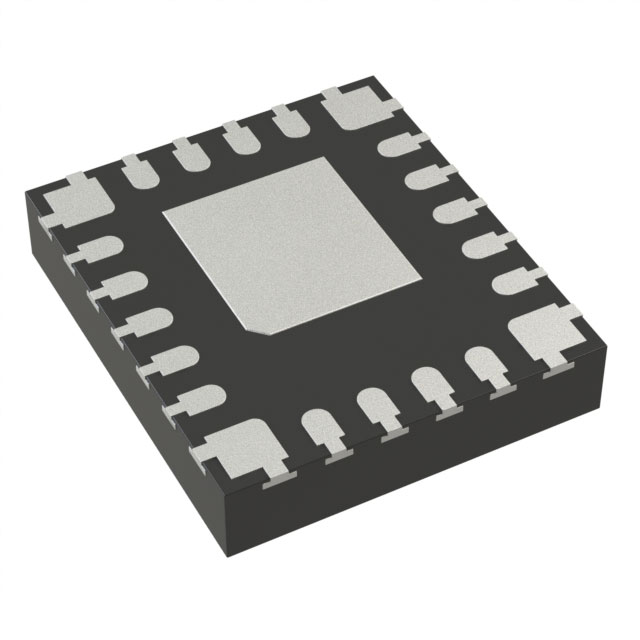

For picture reference, please see the specifications
< >

Commodity Model:TPSM82866AA0SRDJR

Trade Name:TPSM82866AA0SRDJR

Data Manual:TPSM82866AA0SRDJR.pdf

Brand:TI

Particular Year:23+

Package:59-SMD Module

Delivery Date:New original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
TPSM82866AA0SRDJR
Package
59-SMD Module
Describe
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 6A 2.4V - 5.5V Input

Product Description

TPSM82866AA0SRDJR consists of 4 A and 6A step-down converter power modules optimized for small solution size and high efficiency.


Features

Up to 96% efficiency

Excellent thermal performance

CISPR-11 class-B compliant

1% output voltage accuracy

DCS-Control topology for fast transient response

1.4-mm or 1.8-mm ultra-low profile QFN package

2.4-V to 5.5-V input voltage range

Same device part number provides either

0.6-V to VIN adjustable output voltage

13 integrated fixed output voltage options

Power-good indicator with window comparator

2.4-MHz switching frequency

Forced PWM or power save mode

4-µA operating quiescent current

Output voltage discharge

100% duty cycle mode

Hiccup short-circuit protection

Thermal shutdown

–40°C to 125°C operating temperature range

3.5-mm × 4.0-mm QFN package with 0.5-mm pitch

35-mm2 solution size


Application

Core supply for FPGAs, CPUs, ASICs

Optical modules

Medical imaging

Industrial transport

Factory automation and control

Aerospace and defense


Associated Products

Model

Brand

Package

Quantity

Describe

RAA2100404GLG

Renesas

10-DFN

1500

Non-isolated PoL module DC converter 1 output 0.6 to 5V 4A 2.7V-5.5V input

TPSM8S6B24MOYR

TI

45-QFM

2000

Non-isolated PoL module DC converter 1 Outputs 0.5 to 5.5V 25A 2.95V to 16V input

ADUM6028-5WBRIZ

ADI

8-SOIC

1000

Isolation Module DC Converter 1 Output 5V 60mA 4.5V - 5.5V Input

LTM4712IY

ADI

BGA-144

2000

Non-Isolated PoL Module DC DC Converter 1 Output 1 ~ 36V 12A 1V - 36V Input

TPSM33615RDNR

TI

11-QFN-FCMOD

2000

Non-Isolated PoL Module DC DC Converter 1 Output 1 ~ 15V 1.5A 3V - 36V Input

TPSM33615FRDNR

TI

11-QFN-FCMOD

2000

Non-Isolated PoL Module DC DC Converter 1 Output 1 ~ 15V 1.5A 3V - 36V Input

TPSM863257RDXR

TI

QFN-FCMOD-7

1000

Non-Isolated PoL Module DC Converter 1 Output 0.6 ~ 5.5V 3A 3V - 17V Input

TPSM8S6C24MOYR

TI

45-QFM

1000

Non-Isolated PoL Module DC Converter 1 Output 0.5 ~ 3.6V 35A 2.95V - 16V Input

TPS552872QWRYQRQ1

TI

VQFN-21

1000

Buck-Boost Switching Regulator IC Positive Adjustable 0.8V 1 Output 4A 21-PowerVFQFN

TPSM5601R5SRDAR

TI

15-B3QFN

1000

Non-Isolated PoL Module DC Converter 1 Output 1 ~ 6V 1.5A 4.2V - 60V Input
