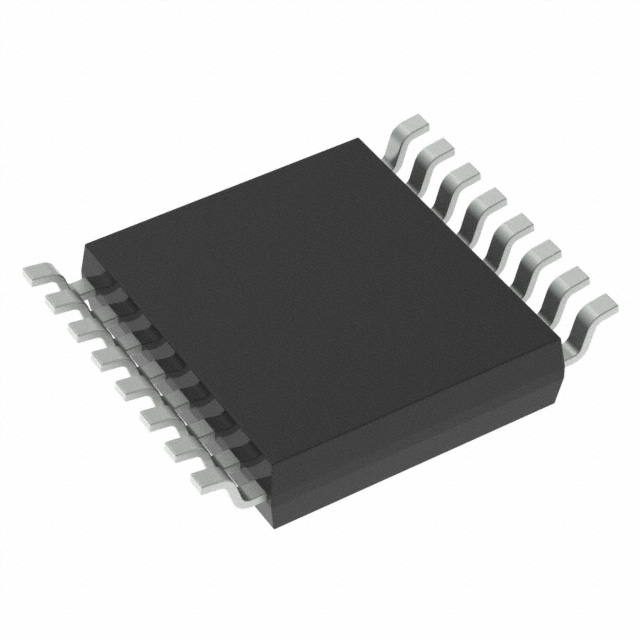

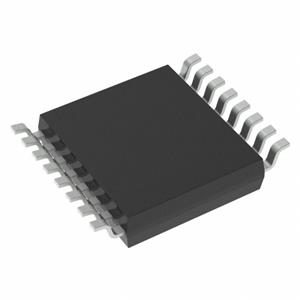

The ADS8353QPWQ1 is a 16-bit, dual-channel, high-speed, synchronous sampling analogue-to-digital converter (ADC) that supports single-ended and pseudo-differential analogue inputs.

Features

- Meets AEC-Q100 standard for automotive applications:

- Temperature Class 1: -40°C to +125°C, TA

- Device HBM ESD Classification 2

- Device CDM ESD Classification C4B

- Functional Safety

- Documentation for Functional Safety system design is available

- 16-bit resolution

- Simultaneous sampling on both channels

- Supports single-ended and pseudo-differential inputs

- Two software-selectable unipolar input ranges:

- (0V to VREF) or (0V to 2x VREF)

- Up to 600kSPS sampling rate

- Excellent DC performance:

- ±0.6LSB DNL

- ±1LSB INL

- ±0.05% gain error

- Excellent AC performance:

- 89dB SNR

- 100dB THD

- Dual, low-drift (10ppm/°C), programmable 2.5V internal reference voltage

Applications

- Battery Management Systems (BMS)

- DC/DC converters

- Energy storage power conversion systems (PCS)

- Solar arc protection
