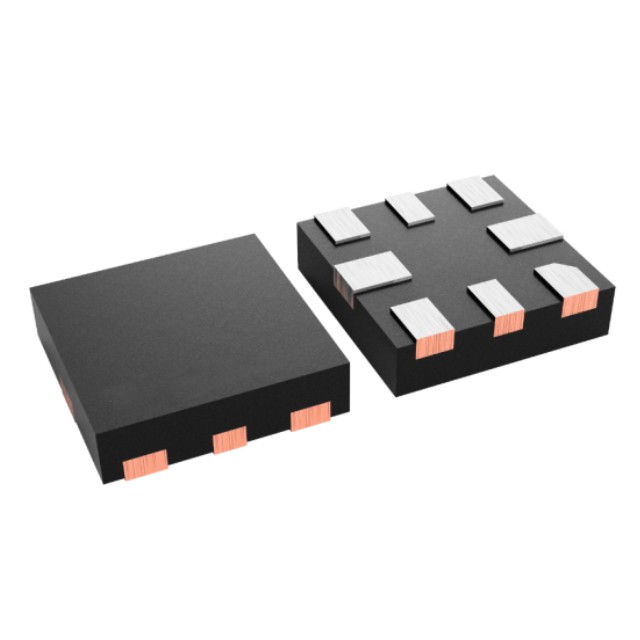

For picture reference, please see the specifications
< >

Commodity Model:ADS7047IRUGR

Trade Name:ADS7047IRUGR

Data Manual:ADS7047IRUGR.pdf

Brand:TI

Particular Year:23+

Package:8-XFQFN

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
ADS7047IRUGR
Package
8-XFQFN
Describe
24-Bit 40kSPS 5-Channel Delta-Sigma ADC with PGA, VREF and IDAC for Factory Automation

Product Description

The ADS7047IRUGR is a 12-bit, 3 MSPS SAR ADC that supports fully differential inputs in the ±AVDD range, with an AVDD range of 2.35V to 3.6V.


Internal offset voltage calibration maintains excellent offset voltage specifications over the entire AVDD and operating temperature range.


The device supports an SPI-compatible serial interface controlled by CS and SCLK signals. The input signal is sampled by the falling edge of CS, while SCLK is used for conversion and serial data output. The device supports a wide digital supply range (1.65V to 3.6V) for direct connection to a variety of host controllers, and the nominal DVDD range of the ADS7047 (1.65V to 1.95V) is compliant with the JESD8-7A standard.


The ADS7047IRUGR is available in a small 8-pin X2QFN package and operates over a wide range of industrial temperatures (-40°C to +125°C). The device's small size and extremely low power consumption make it ideal for space-constrained, battery-powered applications requiring high-speed, high-resolution data acquisition.


Features

3 MSPS throughput

Small package size: X2QFN-8 package (1.5mm × 1.5mm)

Full differential input range: ±AVDD

Wide operating voltage range:

AVDD: 2.35V to 3.6V

DVDD: 1.65V to 3.6V (AVDD-independent)

Temperature range: -40°C to +125°C

Excellent performance:

12-bit NMC DNL, ±0.2-LSB INL

72.8dB SINAD (at 2kHz)

71.7dB SINAD (at 1MHz)

Low power consumption:

4mW (at 3 MSPS, 3.3V AVDD)

130µW (at 100kSPS, 3.3V AVDD)

74µW (at 100kSPS, 2.5V AVDD)

Integrated offset voltage calibration

SPI-compatible serial interface: 60MHz

JESD8-7A compliant digital I/O


Applications

- Optical encoders

- Sonar receivers

- Fishfinders

- I/Q demodulators

- Fibre optic cards and modules

- Thermal Imaging Cameras

- Ultrasonic flow meters

- Handheld radios

Associated Products

Model

Brand

Package

Quantity

Describe

MCP3461RT-E/ST

Microchip

TSSOP-20

3000

16-bit, 153.6kSPS, Single-Channel Analog-to-Digital Converter (ADC) with Vref

MCP3561RT-E/NC

Microchip

UQFN-20

3000

24-bit, 153.6kSPS, Single-Channel Analog-to-Digital Converter (ADC) with V/Vref

MCP3561RT-E/ST

Microchip

TSSOP-20

3000

24-bit, 153.6kSPS, Single-Channel Analog-to-Digital Converter (ADC) with V/Vref

MCP33131D-05T-E/MS

Microchip

MSOP-10

3000

16-bit, 500kSPS, Single-channel analog-to-Digital Converter (ADC)

MCP33131D-05T-E/MN

Microchip

TDFN-10

3000

16-bit, 500kSPS, Single-channel analog-to-Digital Converter (ADC)

MCP33131D-10T-E/MN

Microchip

TDFN-10

3000

16-bit, 1MSPS, Single-channel Analog-to-Digital Converter (ADC)

MCP33131D-10T-E/MS

Microchip

MSOP-10

3000

16-bit, 1MSPS, Single-channel Analog-to-Digital Converter (ADC)

MAX11198ATE

Maxim

TDFN-16

2500

Analogue-to-digital converter - ADC Dual Simultaneous Sampling 16 Bits 2Msps

MAX11195ATE

Maxim

TDFN-16

2500

Analogue-to-digital converter - ADC Dual Simultaneous Sampling 14 Bits 2Msps

MAX11192ATE

Maxim

TDFN-16

2500

12-bit, 2 Msps, dual-channel, simultaneous sampling SAR ADC with internal reference
