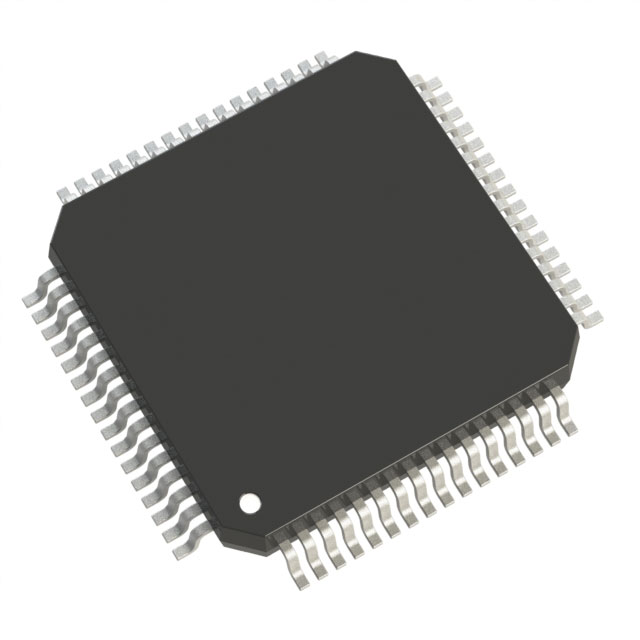

For picture reference, please see the specifications
< >

Commodity Model:IMC102TF064

Trade Name:IMC102TF064

Data Manual:IMC102TF064.pdf

Brand:INFINEON

Particular Year:23+

Package:64-LQFP

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
INFINEON
Model
IMC102TF064
Package
64-LQFP
Describe
Motor driver simulation, PWM PG-LQFP-64-26

Product Description

The IMC102TF064 high-performance motor control IC integrates hardware and algorithms for permanent magnet synchronous motors (PMSM). The IMC100 IC can control variable speed drives and reduce time to market for motor systems with lower system and development costs. Infineon's patented and field-proven Motion Control Engine (MCE) enables field-oriented control (FOC). This is achieved through single shunt or leg shunt feedback, in addition to the use of space vector PWM (with sine wave signal) for high energy efficiency.


Product attribute

Motor type - AC, DC: AC, synchronous

Function: Controller

Interface: Analog, PWM

Application: Household appliances

Current - Output: 50mA

Voltage - Power supply: 3V ~ 5.5V

Operating temperature: -40°C ~ 105°C (TA)

Mounting type: Surface mount type

Package/shell: 64-LQFP

Supplier device package: PG-LQFP-64-2


Apply

● Refrigerator

● Household Appliances

● Pumps and fans

● Any other PMSM driver
