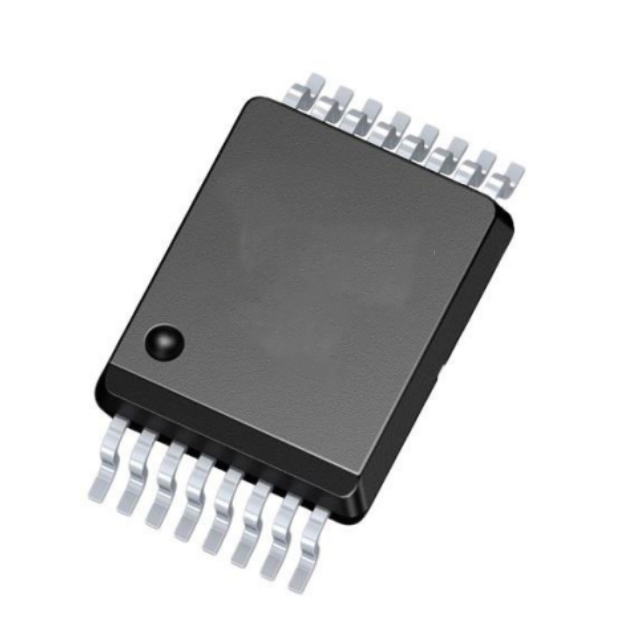

The 1ED3890MC12M enhanced X3 digital series can be configured with DESAT, soft close, UVLO, Miller clamp, two-stage close (TLTO), and fault functions through I2C, simplifying the design of high reliability systems. The X3 digital series (1ED38xx) supports adjustment from inputs through the I2C interface (pins SDA and SCL). The Infineon 1ED38xx single channel isolated driver has an output current of up to 9A and a maximum output power voltage of 40V. It adopts a space saving DSO-16 small pitch wide body package with a creepage distance of 8mm.

Product attributes

Technology: Magnetic coupling

Number of channels: 1

Voltage isolation: 5700Vrms

Common mode transient immunity (minimum): 200V/ns

Propagation delay tpLH/tpHL (maximum): 270ns, 262ns

Rise/fall time (typical value): 15ns, 15ns

Current - Output high and low: 9A, 9A

Current peak output: 9A

Voltage output power supply: 13V~25V

Working temperature: -40 ° C~125 ° C

Installation type: surface mount type

Package/Housing: 16-BSSOP (0.295 ", 7.50mm wide)

Supplier Device Packaging: PG-DSO-16-28

Certification Authority: UL, VDE

application

● Solar cell array inverter

● EV charging

● UPS

● Industrial drives

● Public Interface Card (CAC)

● Welding equipment

● Inductive heating appliances

● Power supply for servers and telecommunications systems
