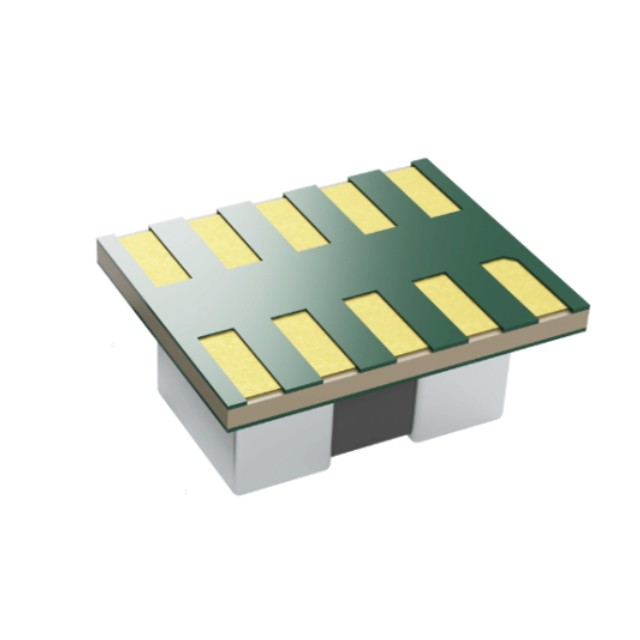

The TPSM828211SILR 1A buck converter power module is a converter in a MicroSiP™ power module optimised for small solution size and high efficiency.

Features

- 1.1mm MicroSiP™ Power Module

- CISPR 11 Class B compliant

- Up to 95% efficiency

- Input voltage range of 2.4V to 5.5V

- 0.6V to 4V adjustable output voltage

- Fixed output voltages available: 1.2V, 1.8V, 2.5V and 3.3V

- Operating quiescent current of 4μA

- DCS-Control Topology

- Power-save mode option for light-load efficiency

- Forced PWM option for CCM operation

- 100% duty cycle for minimum dropout

- Intermittent short circuit protection

- Output discharge

- Power normal output with window comparator

- Integrated soft-start

- Integrated soft-start

- PSpice models available: TPSM82821, TPSM82822, and TPSM82823

- Available in 2.0mm × 2.5mm × 1.1mm 10-pin μSiL package

- 12mm2 total solution size (for fixed output voltage version)

Applications

- Optical modules

- Machine vision

- Industrial PCs

- PLC

- Wired Networks
