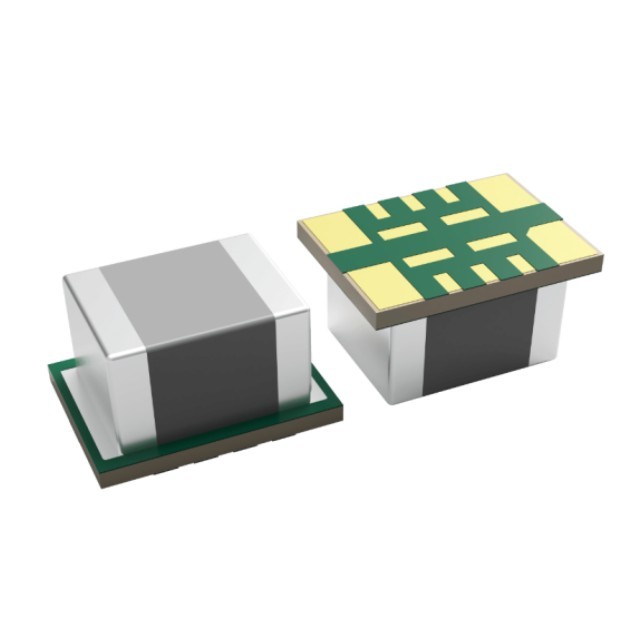

The TPSM82810SILR Step-Down MicroSiP™ Power Module features an integrated inductor and frequency synchronisation in a fixed-frequency peak-current-mode control topology.The TPSM82813SILR has a low-resistance switch that provides up to 4A continuous output current at high ambient temperatures. The switching frequency is externally adjustable from 1.8MHz to 4MHz and can also be synchronised to an external clock over this frequency range.

Features

- Input voltage range: 2.75V to 6V

- Output voltage range: 0.6V to 5.5V

- Adjustable and synchronisable switching frequency from 1.8MHz to 4MHz

- Spread Spectrum Clock - optional

- Optional forced PWM or PFM/PWM operation

- Output voltage accuracy of ±1% (PWM operation)

- Power Normal Output with Window Comparator

- 100% duty cycle

- Output Discharge

- Precision enable input enables

- User defined undervoltage lockout

- Accurate sequencing

- 15µA quiescent current (typical)

- Adjustable soft start or tracking

Applications

- Optical Modules, Data Centre Interconnect

- Signal measurement, source generation, instrumentation

- Patient monitoring and diagnostics

- Wireless infrastructure

- Reinforced communications: sensors, imaging and radar
