The TPSM82901SISR Synchronous Buck Converter Power Module is a very efficient, small and flexible synchronous buck DC-DC converter in a MicroSiP package. The easy-to-use TPSM82901 offers selectable switching frequencies of 2.5MHz or 1.0MHz, allowing the use of small components and providing fast transient response. With a DCS control topology, the TI TPSM82901SISR power modules support high output voltage (VOUT) accuracy of ±1%. A wide input voltage range of 3V to 17V supports a variety of nominal inputs such as 12V supply rails, single or multi-cell Li-Ion, and 5V or 3.3V supply rails.

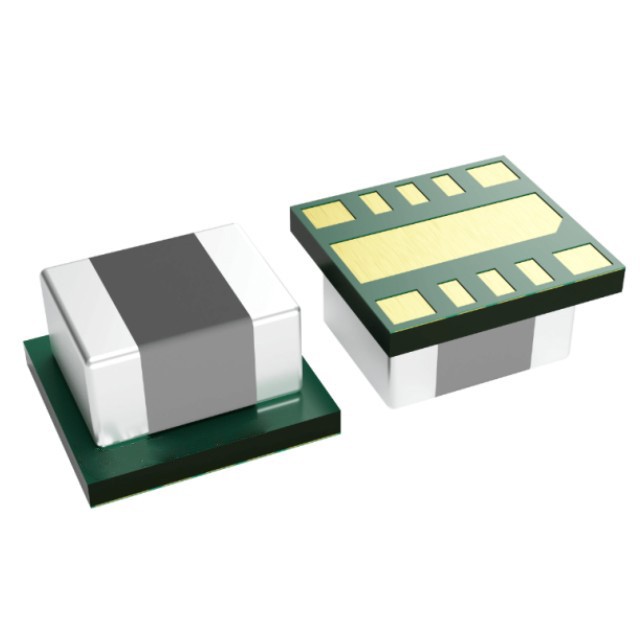

The TPSM82901SISR is available in a small 11-pin MicroSiP package measuring 3.0mm x 2.8mm x 1.6mm with an integrated 1μH inductor.

Features

High efficiency over a wide duty cycle and load range

IQ of 4µA (typical)

RDS(ON): 62mΩ (high side) and 22mΩ (low side)

3mm x 2.8mm x 1.6mm MicroSiP™ package

Continuous output current: up to 1A

Feedback voltage accuracy of ±0.9% over temperature (-40°C to 125°C) range

Configurable output voltage options:

0.6V to 5.5V VFB External Voltage Divider

VSET Internal Voltage Divider 16 Options between 0.4V and 5.5V

DCS Control Topology with 100% Mode

Create custom designs with the TPSM82901 and WEBENCH® Power Designer

Flexibility through MODE/S-CONF pins

Switching frequency: 2.5MHz or 1.0MHz

Forced PWM or automatic (PFM) power saving modes with dynamic mode switching options

Automatic Efficiency Enhancement (AEE)

Output discharge on/off

Highly flexible and easy to use

Optimised pin assignment for single-level routing

Precision enable input

Power normal state output

Adjustable soft start and tracking

No external bootstrap capacitors required

Applications

Data centre and enterprise computing

Wired networks

Wireless infrastructure

Factory automation and control

Test and Measurement
