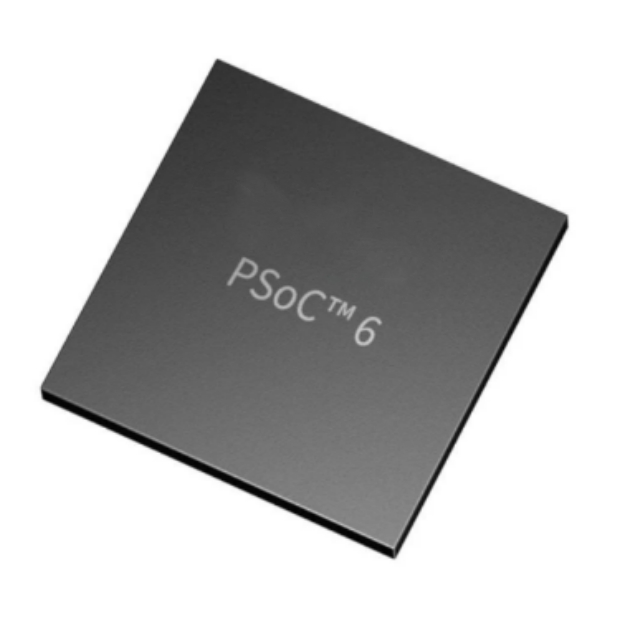

The CY8C624AAZI-S2D44 microcontrollers are based on an ultra-low-power 40nm platform combining Arm® Cortex®-M4 and Arm® Cortex®-M0+ CPUs.These devices include low-power Flash technology, programmable digital and analogue resources, and best-in-class CAPSENSE™ technology for touch and proximity applications. The microcontrollers provide security built into the platform architecture through hardware cryptographic accelerators, memory and peripheral protection units. pSoC 62 is designed for IoT applications such as wearables, smart home, industrial IoT, portable medical devices and more.

Product Attributes

Core processor: ARM® Cortex®-M0+, ARM® Cortex®-M4F

Core specification: 32-bit dual-core

Speed: 100MHz, 150MHz

Connectivity: eMMC/SD/SDIO, FIFO, I²C, IrDA, LINbus, Microwire, Smart Card, SPI, SSP, UART/USART, USB

Peripherals: Power Down Detect/Reset, CapSense, I²S, LCD, LVD, POR, PWM, WDT

Number of I/O: 102

Programme memory capacity: 2MB (2M x 8)

Program memory type: Flash

RAM Size: 1M x 8

Voltage - Supply (Vcc/Vdd): 1.7V ~ 3.6V

Data Converter: A/D 16x12b SAR, 10b Triangle Integral; D/A 2x7/8b

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package/Case: 128-LQFP

Supplier Device Package: 128-TQFP (14x20)
