The CY8C6347FMI-BLD53 is a high-performance, ultra-low power and secure MCU platform designed for IoT applications. The PSoC™ 63 product family with Bluetooth® LE, based on the PSoC™ 6 MCU platform, is a combination of high-performance microcontrollers with low-power Flash technology. Based on the PSoC™ 6 MCU platform, the product family combines a high-performance microcontroller with low-power Flash technology, digital programmable logic, high-performance analogue-to-digital logic, high-performance analogue-to-digital conversion, and a combination of standard communication and timing peripherals. the PSoC™ 63 product family offers wireless connectivity in accordance with the Bluetooth® LE 5.0 standard.

Product Attributes

Core processor: ARM® Cortex®-M4/M0

Core specification: 32-bit dual-core

Speed: 100MHz, 150MHz

Connectivity: I²C, LINbus, QSPI, SPI, UART/USART, USB

Peripherals: Bluetooth, undervoltage detection/reset, capacitive sensing, DMA, I²S, LCD, POR, PWM, WDT

Number of I/O: 70

Programme memory capacity: 1MB (1M x 8)

Programme memory type: Flash

EEPROM Size: 32K x 8

RAM Size: 288K x 8

Voltage - Supply (Vcc/Vdd): 1.7V ~ 3.6V

Data Converter: A/D 8x12b SAR; D/A 1x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

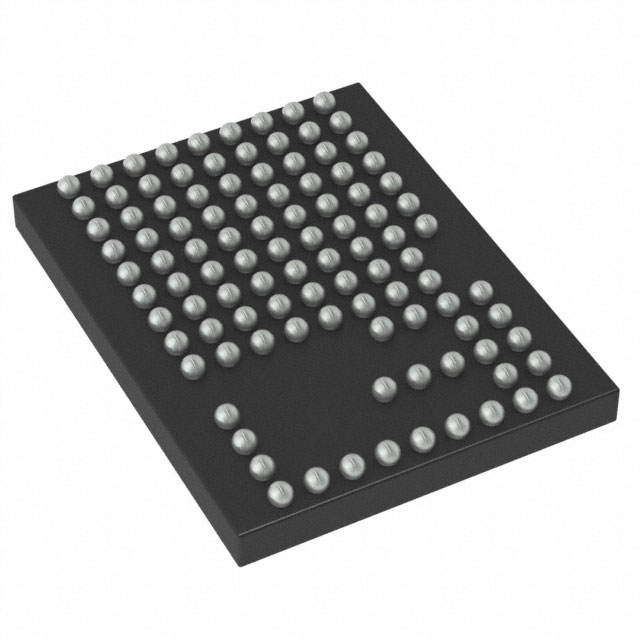

Package/Housing: 104-UFBGA, WLCSP

Supplier Device Package: 104-WLCSP (3.8x5)
