The CYPM1211-40LQXI is designed for dual role port (DRP) USB Type-C PD applications. The Infineon Technologies PMG1-S2 features 128KB of Flash memory, 8KB of SRAM, 20 GPIOs, a USB device controller, a cryptographic engine, a voltage regulator withstanding 20 V and a pair of FETs for switching the 5 V (VCONN) power supply.The device has an integrated gate driver for external VBUS FETs and system-level ESD protection, and is available in a 40- QFN and 42-CSP packages. The solution optimises space and BOM while being easily customised through the ModusToolbox™ development environment and the EZ-PD PMG1 SDK.

Product Attributes

Core Processor: ARM® Cortex®-M0

Core specification: 32-bit

Speed: 48MHz

Connectivity: I²C, SPI, UART/USART, USB

Peripherals: Undervoltage Detect/Reset, POR, PWM, Temperature Sensor, WDT

Number of I/O: 20

Program memory capacity: 128KB (128K x 8)

Programme memory type: Flash

RAM Size: 8K x 8

Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

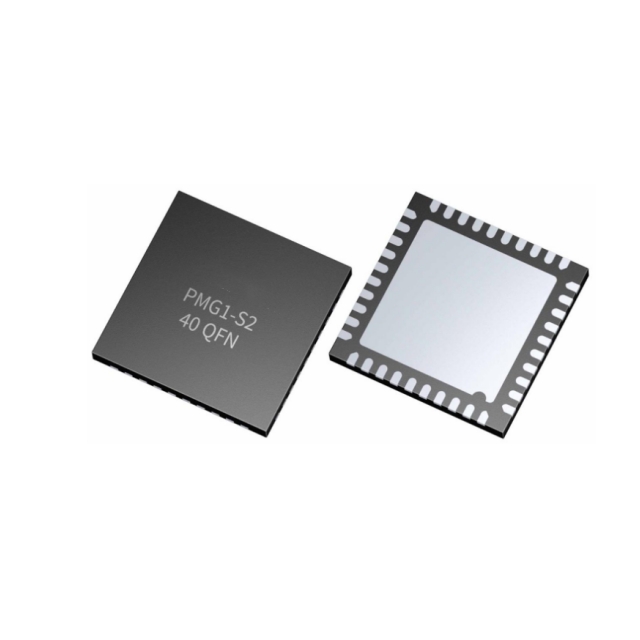

Package/Housing: 40-UFQFN Exposed Pad

Supplier Device Package: 40-QFN (6x6)
