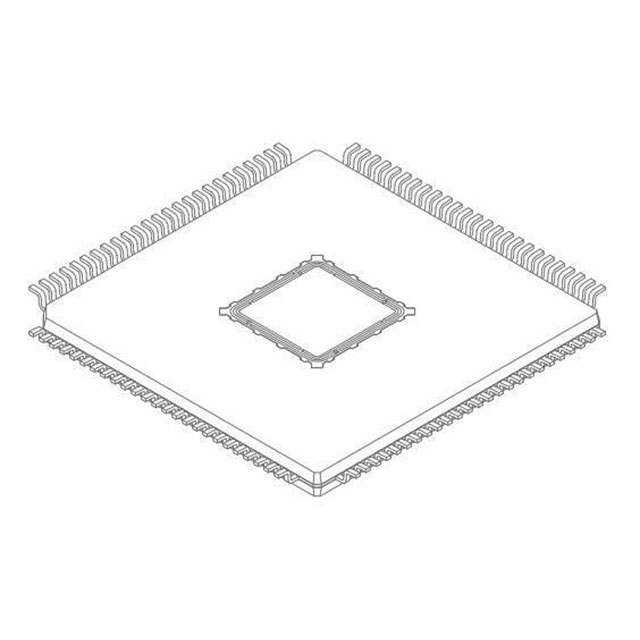

ATSAM4C16CB-AUTR is system-on-chip solutions for smart energy applications, built around two high performance 32-bit Arm® Cortex®-M4 RISC processors. It operate at a maximum speed of 120 MHz and feature up to 2 Mbytes of embedded Flash, up to 304Kbytes of SRAM and on-chip cache for each core.

Product Features

Application/Master Core

ARM Cortex-M4 running at up to 120 MHz(1)

Memory Protection Unit (MPU)

DSP Instruction

Thumb®-2 instruction set

Instruction and Data Cache Controller with 2 Kbytes Cache Memory

Up to 2 Mbytes of Embedded Flash for Program Code (I-Code bus) and Program Data (D-Code bus) with Built-in ECC (2-bit error detection and 1-bit correction per 128 bits)

Up to 256 Kbytes of Embedded SRAM (SRAM0) for Program Data (System bus)

8 Kbytes of ROM with embedded bootloader routines (UART) and In Application Programming (IAP) routines

Full-speed USB Host and Device Port (available only for SAM4C32E in a 144-pin package)

Up to two 400 kHz Master/Slave and Multi-Master Two-wire Interfaces (I2C compatible)

Up to seven Serial Peripheral Interfaces (SPI)

Two 3-channel 16-bit Timer/Counters with Capture, Waveform, Compare and PWM modes

Quadrature Decoder Logic and 2-bit Gray Up/Down Counter for Stepper Motor

4-channel 16-bit Pulse Width Modulator

32-bit Real-time Timer
