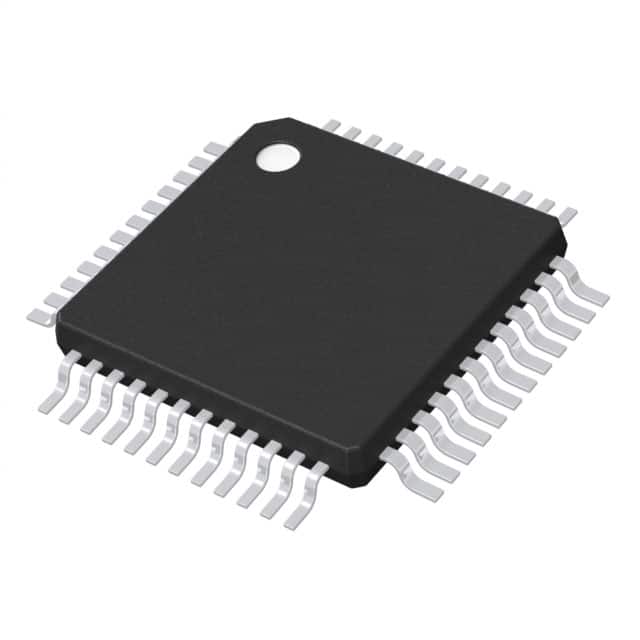

DSPIC33CK512MP605-E/PT Digital Signal Controller (DSC) is based on 100MIPs dsPIC®DSC core, integrated DSP and enhanced chip internal and external. The device is available in a 48-TQFP pin package and is suitable for controlling BLDC, PMSM, ACIM, SR and stepper motors. The DSPIC33CK series DSC is also ideal for switching mode power supplies such as AC/DC, DC/DC, UPS and PFC, providing high-precision digital control for buck, boost, flyback, half-bridge, full-bridge, LLC and other power circuits to achieve the highest possible energy efficiency.

Specifications

Core processor: dsPIC

Kernel specification: 16 bits

Speed: 100MIPs

Connection capability: CANbus, I²C, IrDA, LINbus, SPI, UART/USART

Peripheral: Power failure detection/reset, DMA, I²S, motor control, POR, PWM, QEI, WDT

Number of I/ OS: 39

Program storage capacity: 512KB (512K x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 64K x 8

Voltage - power supply (Vcc/Vdd) : 3V ~ 3.6V

Data converter: A/D 19x12b SAR; D/A 6x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 125°C (TA)

Mounting type: Surface mount type

Package/case: 48-TQFP

Supplier Package: 48-TQFP (7x7)

Basic product number: DSPIC33CK512MP605
