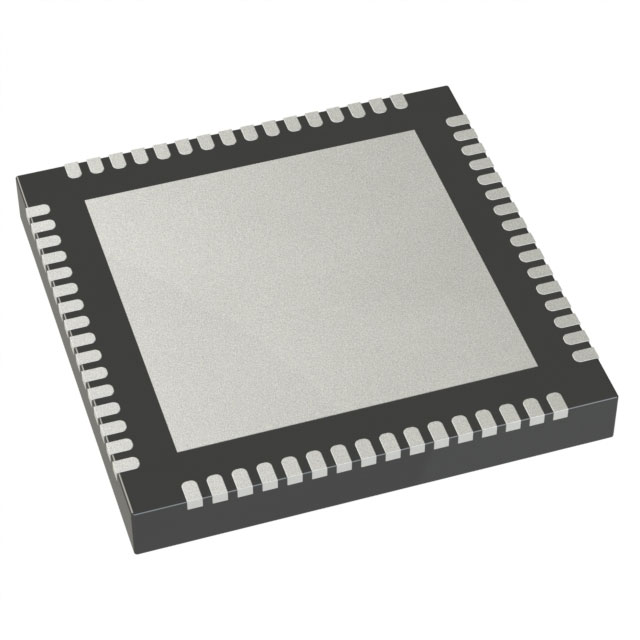

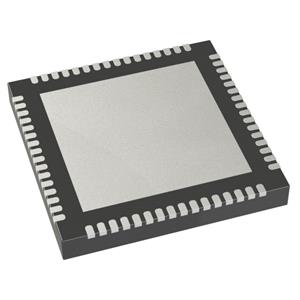

DSPIC33FJ128MC706A-I/MR (QFN-64): 40MIP, dsPIC™ 33F 16-bit Digital Signal Controller (DSC)

The DSPIC33FJ128MC706A-I/MR supports a wide range of motor control applications such as brushless DC motors, single-phase and three-phase induction motors, and switched reluctance motors. the DSPIC33FJ128MC706A-I/MR motor control products are also ideally suited for use in uninterruptible power supplies (UPSs), inverters, switched-mode power supplies, power factor correction, and for controlling the power consumption of power management modules in servers, telecom equipment and other industrial equipment.

DSPIC33FJ128MC706A-I/MR Key Performance Parameters:

Series: dsPIC™ 33F

Core Processor: dsPIC

Core Specification: 16-bit

Speed: 40 MIP

Number of I/Os: 53

Program Memory Capacity: 128KB (128K x 8)

RAM Size: 16K x 8

Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V

Data Converter: A/D 16x10b/12b

Operating Temperature: -40°C ~ 85°C (TA)

DSPIC33FJ128MC706A-I/MR Product Details:

Core: 16-bit dsPIC33F CPU

Code-Efficient (C and Assembly) Architecture

Two 40-bit Wide Accumulators

Single-Cycle (MAC/MPY) with Dual Data Acquisition

Single-Cycle Mixed-Symbol MUL with Hardware Division

Clock Management

±2% Internal Oscillator

Programmable PLL and Oscillator Clock Source

Fail-Safe Clock monitor (FSCM)

Standalone watchdog timer (WDT)

Fast wake-up and start-up

Operating conditions

3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS

3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS
