DSPIC33EP512GM604-E/ML: dsPIC® DSC - 16-bit dsPIC™ 33EP Digital Signal Controller (DSC), QFN-44

DSPIC33EP512GM604-E/ML Specifications:

Product: DSCs

Core: dsPIC33EP

Number of Cores: 1 Core

Maximum Clock Frequency: 60 MHz

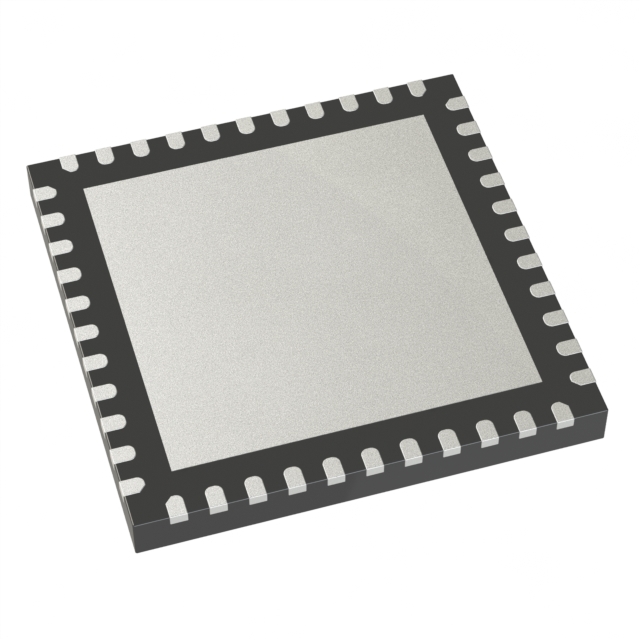

Package / Case: QFN-44

Program Memory Size: 512 kB

Data RAM Size: 48 kB

Operating Supply Voltage: 3 V to 3.6 V

Mounting Style: SMD/ SMT

Minimum operating temperature: - 40 °C

Maximum operating temperature: + 125 °C

Data bus width: 16 bit

Information:

DSPIC33EP512GM604-E/ML - Microchip's dsPIC33E family of digital signal controllers (DSCs) features a 70 MIPS dsPIC® DSC core with integrated DSP and enhanced on-chip peripherals. These DSCs enable the design of high-performance precision motor control systems that are more energy-efficient, quieter in operation, wider in range, and longer in life. They can be used to control brushless DC motors, permanent magnet synchronous motors, AC induction motors and stepper motors. They are also ideal for high-performance general purpose applications.

Operating Conditions

3.0V to 3.6V, -40°C to +85°C, up to 70 MIPS

3.0V to 3.6V, -40°C to +125°C, up to 60 MIPS

Core: 16-bit dsPIC33E CPU

Code-efficient (C and assembly) architecture

Two 40-bit wide accumulators

Single-cycle (MAC/MPY) with dual data fetch

Single-cycle mixed-symbol MUL add-hardware-divide

32-bit multiplication support
