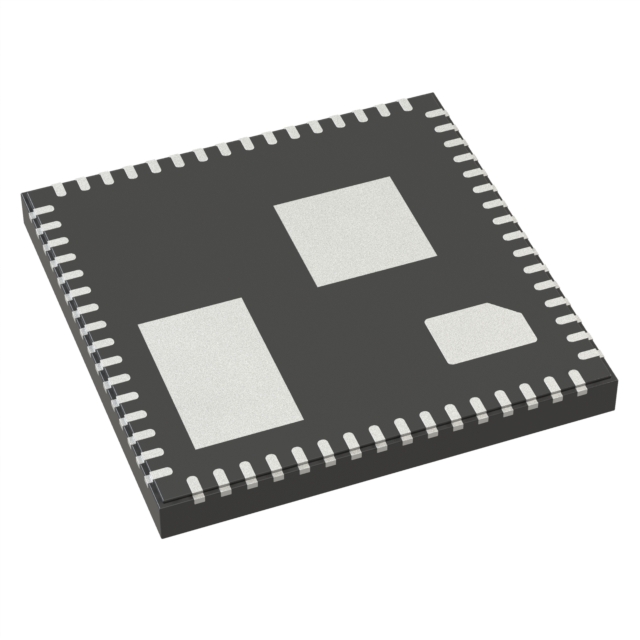

Microchip (DSPIC33CDVC128MP506-I/M9) Motor Control DSC with Full-Bridge MOSFET Gate Driver and CAN Transceiver, VGQFN-64

Basic Information:

Model: DSPIC33CDVC128MP506-I/M9

Package: VGQFN-64

Type: Digital Signal Controller (DSC)

Overview: Microchip's dsPIC33CDVC128MP506 integrated motor driver combines a digital signal controller (DSC) with a full-bridge MOSFET gate designed for 3-phase BLDC motor control and a LIN driver for automotive communications. driver designed for 3-phase BLDC motor control and a LIN transceiver for automotive communications.

DSPIC33CDVC128MP506-I/M9 Product Attributes:

Product: DSCs

Core: dsPIC33CD

Maximum Clock Frequency: 50 kHz

Package/Case: VQFN-64

Program Memory Size: 128 kB

Data RAM Size: 16 kB

Operating Supply Voltage: 4.5 V to 5.5 V

Mounting Style: SMD/SMT

Min. Operating Temperature: - 40 °C

Maximum Operating Temperature: + 150 °C

Interface Type: I2C, I2S, SPI, UART

Humidity Sensitivity: Yes

Number of Inputs/Outputs: 29 I/Os
