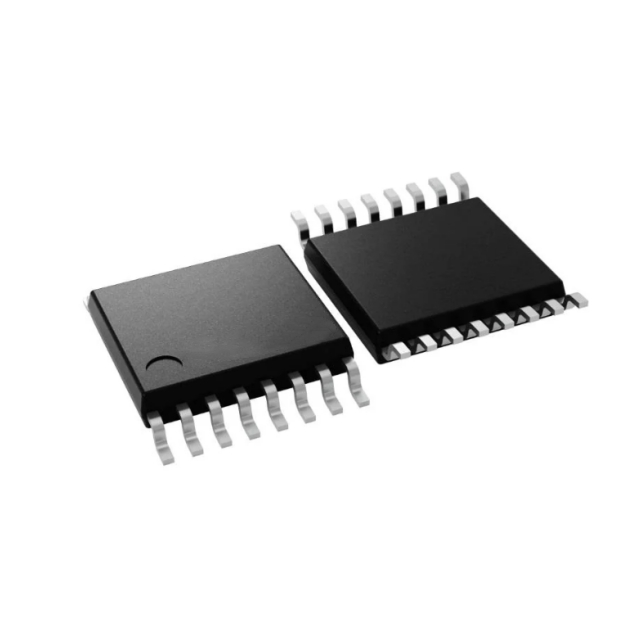

The LDC5072EPWRQ1 is an analogue front-end for non-contact inductive position sensors for absolute rotary position detection in automotive and industrial applications. The LDC5072EPWRQ1 is used to excite a coil typically printed on a printed circuit board (PCB). The excitation is coupled back to the two receiver coils on the same PCB via a conductive target close to the PCB. The conductive target can also be a pattern printed on another PCB. The coil PCB remains stationary and the target moves with the motor, actuator or valve.

Features

● The following features are available according to AEC-Q100:

● Device temperature class 0: -40°C to +160°C operating ambient temperature range

● Integrated analogue front-end IC for non-contact inductive position sensors with 0° to 360° absolute rotary position

● Reduces system cost by eliminating the need for magnets

● Supports operation in harsh environments; unaffected by stray magnetic fields, dirt, and contamination

● High resolution with ≤1 degree accuracy at speeds up to 480,000 RPM

● Differential signal path with sine and cosine outputs to support wide dynamic input range

● 5V and 3.3V input power supply operating modes

Applications

● Rotary position sensors for

● Traction motor inverters for electric/hybrid vehicles

● Electric power steering

● Brake booster motors

● Integrated starter generators

● Small-angle or arc motion sensors for

● Pedal position

● Valves and actuators

● Robotics
