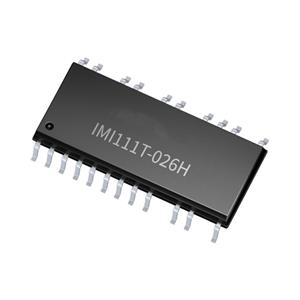

The IMI111T026H device is part of the IMI110 family of iMOTION™ IPMs.The IMI111T is a family of fully integrated turnkey high voltage motor drive modules. High voltage motor drive modules designed for high performance, high efficiency PMSM/BLDC motor drive applications. It integrates a motor controller, a three-phase high-voltage, ruggedised gate driver with integrated bootstrap and six 600 V TRENCHSTOP™ IGBTs (reverse conduction drive 2). Depending on the IGBTs used in the package Depending on the IGBTs used in the package, the IMI111T is suitable for applications up to 600 V DC.

Product properties

Motor type - stepper: multiphase

Motor Type - AC, DC: AC, Synchronous

Function: Driver - Fully Integrated, Control and Power Stage

Output Configuration: Half Bridge (3)

Interfaces: Analogue, PWM, UART

Technology: IGBT

Application: Fan Motor Driver

Current - Output: 2A

Voltage - Supply: 3V ~ 5.5V, 13.5V ~ 16.5V

Voltage - Load: 600V

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

Package/Shell: 22-SOIC (0.295", 7.50mm Width), 22 Leads

Supplier Device Package: PG-DSO-22-1

Applications

● Small and large household appliances

● Fans, pumps, compressors

● General purpose variable speed drives
