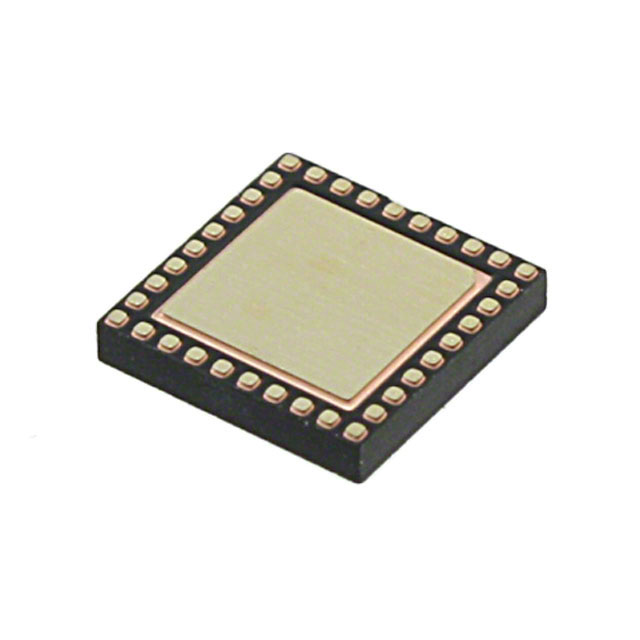

The PIC24EP64MC203-E/M5 PIC24E microcontrollers (MCUs) feature an enhanced core with up to 70 MIPS of performance. Featuring up to 536KB of Flash and 52KB of RAM, as well as greater I/O capacity, these Microchip 16-bit MCUs also feature a USB 2.0 OTG interface, providing enhanced motor control, graphics, audio, and real-time embedded control.

Product Specifications

Family: Automotive, AEC-Q100, PIC® 24EP

Core Processor: PIC

Core Specification: 16-bit

Speed: 60 MIPs

Connectivity: I²C, IrDA, LINbus, QEI, SPI, UART/USART

Peripherals: Undervoltage Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT

Number of I/Os: 25

Program Memory Capacity: 64KB (22K x 24)

Program Memory Type: Flash

RAM Size: 4K x 16

Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V

Data Converter: A/D 8x10b, 8x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Housing: 36-VFTLA Exposed Pad

Supplier Device Package: 36-VTLA (5x5)
