ADP5320BCBZ-1 highly integrated power management unit combines nine digitally adjustable regulators, a fuel gauge, a 12-bit analog-to-digital converter, 2 kb of one time programmable memory, anticounterfeit logic.

Features

Wide input supply voltage range: 1.8 V to 5.5 V

Low quiescent current: 5.1 µA standby mode, including UVLO

16-bit coulomb counter fuel gauge with integrated high-side current sensing resistor

12-bit ADC to monitor battery voltage, output voltages, and junction temperature

Channels 1 and Channel 2: 150 mA low power buck-boostregulator

Selective buck, boost, or buck-boost operation

Selective hysteresis or pulse-width modulation (PWM) mode

Selective PWM frequency: 50 kHz to 225 kHz

2× programmable GPIOs for clock synchronization or fast stop switching input

Channel 3: 150 mA low power buck regulator

Channel 4 Through Channel 6, and Channel 8: 50 mA low noise LDO, 1.65 V to 5.5 V input supply voltage range

Channel 7: 50 mA sink current LDO

Channel 9: 50 mA, low noise LDO, 1.0 V to 1.9 V input supply voltage range

I2C interface with interrupt warning

2 kb OTP memory

Power-good monitor and watchdog power hard reset

UVLO, peak current-limit protection, and TSD protection

Integrated anticounterfeit logic module

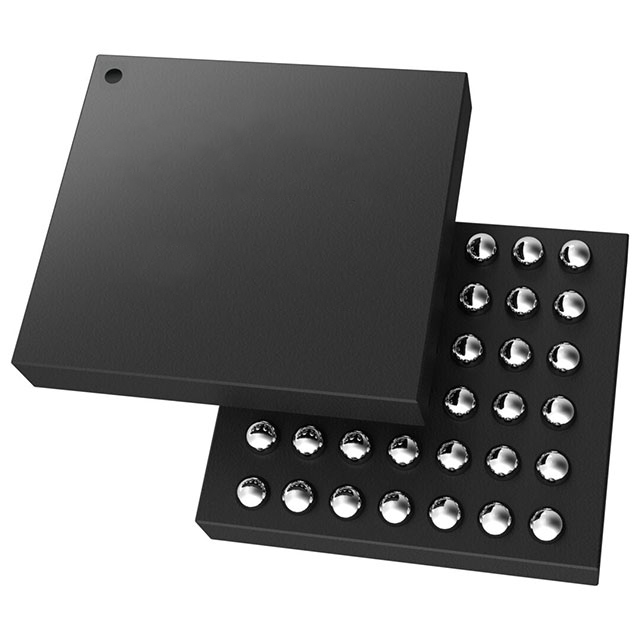

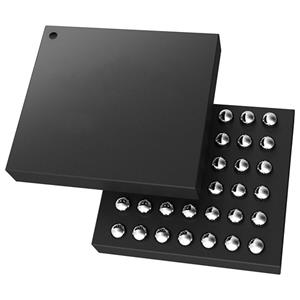

42-ball, 0.40 mm pitch, 2.880 mm × 2.980 mm WLCSP

−10°C to +70°C operating junction temperature range

Applications

Wearable medical applications

Internet of Things (IoT) applications

Disposable sensor devices

Battery-powered devices
