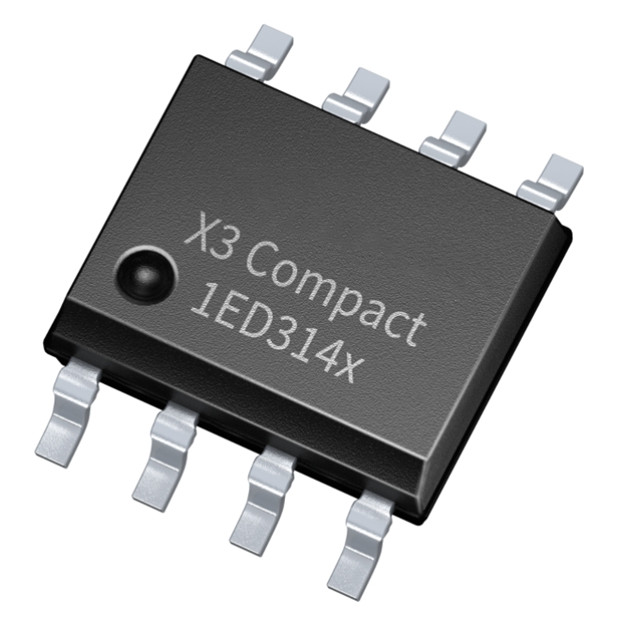

The 1ED3140MU12F is part of the EiceDRIVER™ Compact 1ED31xx series (X3 compact series). The 1ED3140 has independent feed current and pull current output, accurate and stable timing function, to ensure that the IGBT is in a safe shutdown state when the output chip is not connected to the power supply, and the short-circuit clamp limits the gate voltage during short circuit.

Advantages

Integrated filters reduce the need for external filters

Strict on-transmission delay matching between different products (up to 7 ns), tolerance improves application robustness and does not fluctuate due to aging, current and temperature

Suitable for high ambient temperature and fast switching applications

UL 1577 (planned) VISO= 3.6kV (rms) for 1s, 3.0kV (rm) for 1min

Outstanding gate driver propagation delay consistency (up to 8 nanoseconds) minimizes the impact of the gate driver on the total dead time

Precise thresholds and timing, combined with UL 1577 certification, achieve superior application safety

Typical application

•EV charging

• Energy storage system

• Solar inverter

• Server and Telecom Switching Mode Power Supplies (SMPS)

•UPS system

• AC and brushless DC motor drives

• Commercial Air Conditioning (CAC)

• High voltage DC-DC converter and DC-AC inverter
