The TPS6594141BRWERQ1 power management IC (PMIC) provides four flexible multiphase configurable buck converters (3.5A per phase) and one additional buck converter (2A current). All bucks can be synchronised to internal 2.2MHz or 4.4MHz or external 1MHz, 2MHz or 4MHz clock signals. Integrated spread spectrum modulation can be added to the synchronised buck switch clock signal to improve the EMC performance of the device, which is also available to external devices via the GPIO output pins. The device features four LDOs: three with 500mA current capability that can be configured as load switches, and one with 300mA current capability and low noise performance.

Product Attributes

Topology: Buck Synchronous (5), Linear (LDO) (4)

Number of Outputs: 9

Frequency - Switching: 2.2MHz, 4.4MHz

Voltage/Current - Output 1: 0.3V ~ 3.34V, 3.5A

Voltage/Current - Output 2: 0.3V ~ 3.34V, 3.5A

Voltage/Current - Output 3: 0.3V ~ 3.34V, 3.5A

With LED Driver: None

With Monitor: No

With Sequencer: Yes

Voltage - Supply: 3V ~ 5.5V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount, Wettable Sides

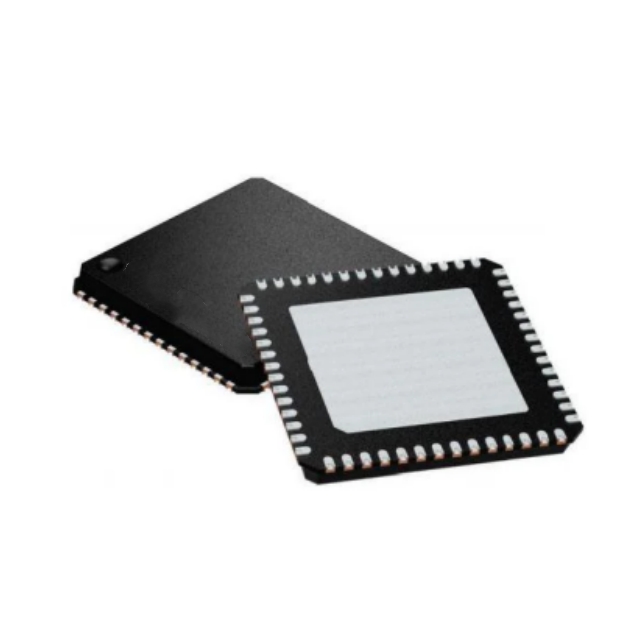

Package/Housing: 56-VFQFN Exposed Pad

Supplier Device Package: 56-VQFNP (8x8)

Applications

● Automotive infotainment systems and digital clusters, navigation systems, telematics, body electronics and lighting

● Advanced Driver Assistance Systems (ADAS)

● Industrial control and automation
