The LP87745101RXVRQ1 is designed to meet power management requirements and the power management requirements of the IWR MMIC. The device has three step-down DC/DC converters, a 5 V boost converter, and a 1.8 V or 3.3 V LDO. The LDO is powered by the boost converter and is used to power the xWR I/O. The SPI serial interface and enable signals control the device. The buck DC/DC converters support programmable switching frequencies of 4.4 MHz, 8.8 MHz, or 17.6 MHz. The high switching frequency and low noise over a wide frequency range enable LDO-free power solutions with little or no passive filtering.

Product Attributes

Topologies: Buck (3), Boost (1), Linear (LDO) (1)

Number of Outputs: 5

Frequency - Switching: 4.4MHz, 8.8MHz, 17.6MHz

Voltage/Current - Output 1: 0.9V ~ 1.9V, 3A

Voltage/Current - Output 2: 0.9V ~ 1.9V, 3A

Voltage/Current - Output 3: 0.9V ~ 1.9V, 3A

With LED Driver: None

With Monitor: None

With Sequencer: None

Voltage - Supply: 3V ~ 4V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount, Wettable Sides

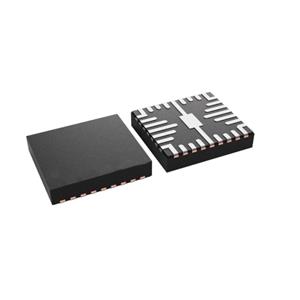

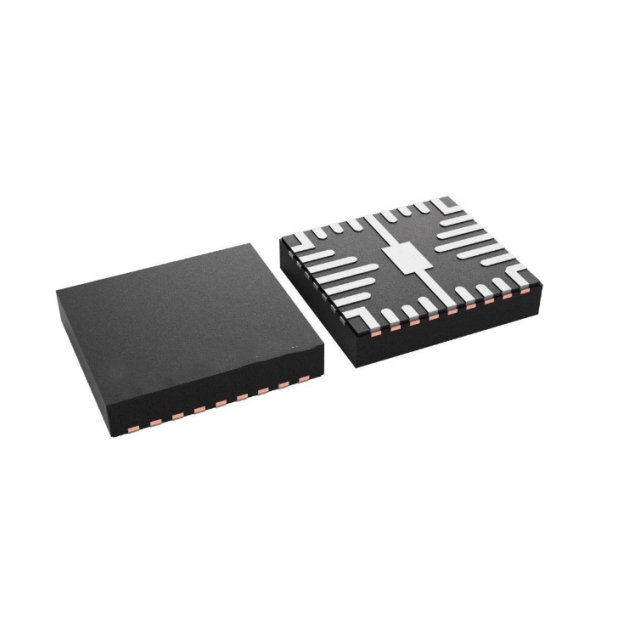

Package/Housing: 28-PowerVFQFN

Supplier Device Package: 28-VQFN-HR (4.5x5)

Applications

● Short- and medium-range corner radar

● Long-range frontal radar

● Ultra-short range radar

● Low ripple, low noise applications
