The TPS7A8301ARGWR is a low noise (4.4 μVRMS), low dropout, linear regulator (LDO) capable of delivering 2 A with a maximum dropout of only 200 mV. The output voltage is pin-programmable from 0.8 V to 3.95 V, with a resolution of 50 mV. The combination of low noise, high PSRR, and high output current capability makes the device an excellent choice for powering noise-sensitive components such as those in high-speed communications, video, medical, or test and measurement applications. The combination of low noise, high PSRR, and high output current capability makes the device an excellent choice for powering noise-sensitive components such as those found in high-speed communications, video, medical, or test and measurement applications.

Product Attributes

Output Configuration: Positive

Output Type: Adjustable

Number of Regulators: 1

Voltage - Input (Max): 6.5V

Voltage - Output (Min/Fixed): 0.8V

Voltage - Output (Max): 5.2V

Voltage Drop (Max): 0.3V @ 2A

Current - Output: 2A

Current - Static (Iq): 4.3 mA

Current - Supply (Max): 5 mA

PSRR: 42dB ~ 39dB (10kHz ~ 500kHz)

Control Features: Current Limit, Enable, Power Good, Soft Start

Protection Features: Over Current, Over Temperature, Short Circuit

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

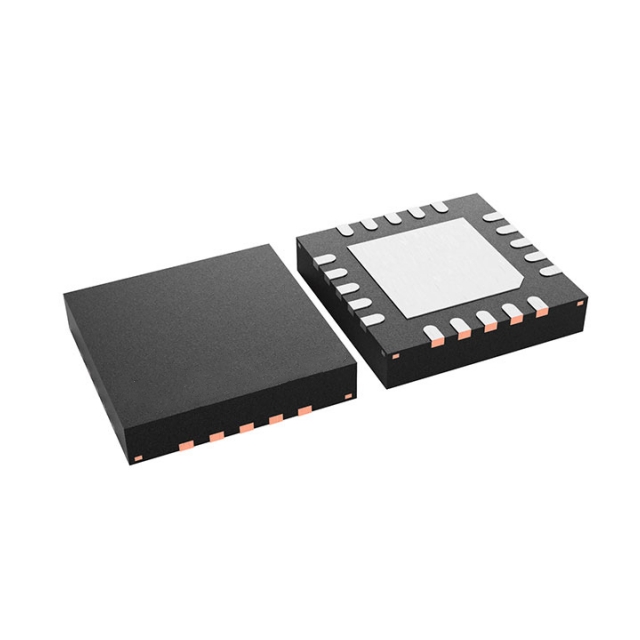

Package/Shell: 20-VQFN Exposed Pad

Supplier Device Package: 20-VQFN (5x5)

Applications

● Macro Remote Radio Units (RRUs)

● Outdoor backhaul units

● Active Antenna Systems mMIMO (AAS)

● Ultrasound scanners

● Laboratory and field instruments

● Sensors, imaging and radar
