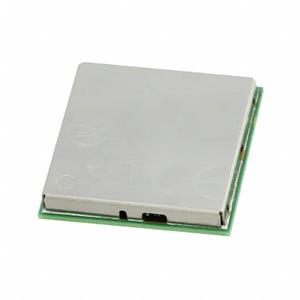

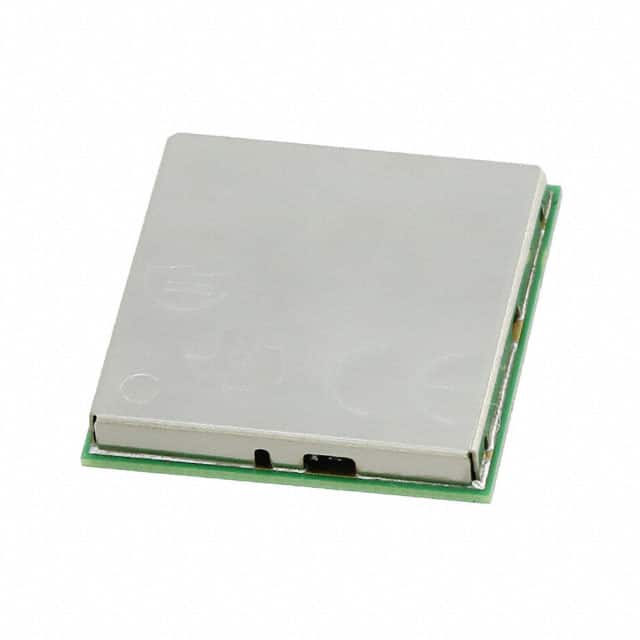

The WL1837MODGIMOCR dual-band Combo 2x MIMO Wi-Fi module provides high throughput and extended range with the optimal power design, and realizes the coexistence of Wi-Fi and Bluetooth.

The WL1837MOD is a Wi-Fi-enabled dual-band 2.4GHz and 5GHz module solution with two antennas that support industrial temperature levels. The device is FCC, IC, ETSI/CE and TELEC certified for use with access points (aps) (DFS-enabled) and clients. TI provides drivers for advanced operating systems such as Linux and Android™.

Specification

Rf series/standard: Bluetooth, WiFi

Protocol: 802.11a/b/g/n, Bluetooth 4.2

Modulation: CCK, DSSS, GFSK, OFDM

Frequency: 2.4GHz, 5GHz

Data rate: 54Mbps

Power-output: 18dBm

Sensitivity: -95dBm

Serial interface: SDIO, UART

Antenna type: -

IC/ parts used: -

Storage capacity: -

Voltage-supply: 2.9V ~ 4.8V

Current - Reception: 49mA ~ 85mA

Current transmission: 243mA to 510mA

Mounting type: surface mount type

Operating temperature: -40°C to 85°C

Package/case: 100-SMD module

Basic product number: WL1837

Application

Internet of things

multimedia

Household electronic products

Household appliances and white goods

Industrial and home automation

Intelligent gateway and metering

Video conference

Cameras and security
