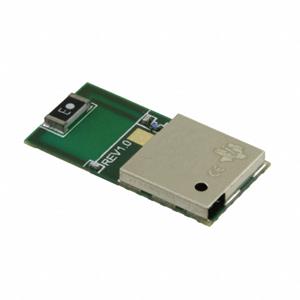

The CC2564MODACMOG module is a complete Bluetooth® BR/EDR and low-energy HCI solution that reduces design effort, cost and time to market. Containing a Texas Instruments 7th generation core, it is a versatile, product-proven solution that complies with the Bluetooth 4.1 standard. The module also has FCC, IC and CE approvals, and no RF experience is required to develop with the device; the device includes a royalty-free software stack that is compatible with multiple host MCUs and MPUs. Best-in-class RF performance with twice the transmit power and receive sensitivity of other Bluetooth low-power solutions and higher throughput.

Product Properties

RF Family/Standard: Bluetooth

Protocol: Bluetooth V4.0 Dual Mode

Modulation: DPSK, DQPSK, GFSK

Frequency: 2.4GHz

Data Rate: 3.9Mbps

Power - Output: 10dBm

Sensitivity: -93dBm

Serial Interface: UART

Antenna Type: Integrated, Chip

IC/Part Used: CC2564

Voltage - Supply: 2.2V ~ 4.8V

Current - Receive: 40.5mA ~ 41.2mA

Current - Transmit: 40.5mA ~ 41.2mA

Mounting Type: Surface Mount

Operating Temperature: -30°C ~ 85°C

Package/Housing: 33-SMD Module

Applications

● Mobile phone accessories

● Sports and fitness applications

● Wireless audio solutions

● Set-top boxes and remote controls

● Toys

● Test and Measurement

● Industrial Cable replacement

● Wireless Sensors

● Automotive Aftermarket

● Health & Wellness
