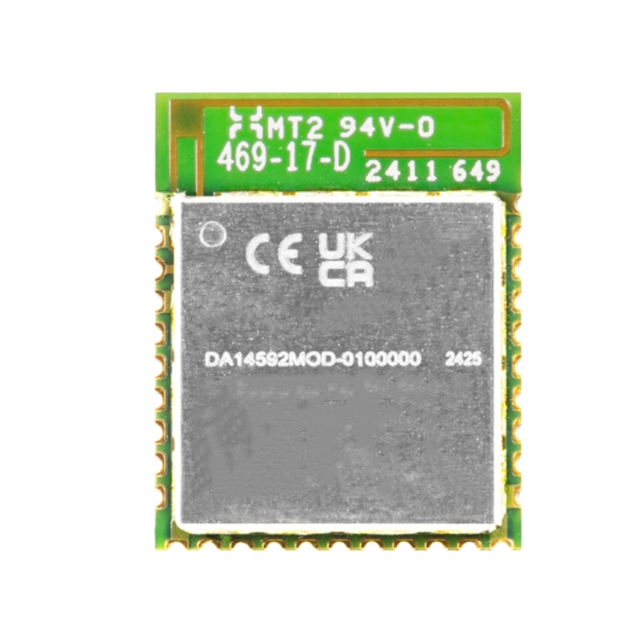

The DA14592MOD-01000002 module is based on the DA14592 low-power Bluetooth ® 5.2 system-on-chip (SoC) and takes full advantage of all its hardware features and functions. This module integrates all passive components and antennas and is supported by user-friendly software. The DA14592MOD-01000002 is widely used in the market and has obtained cross-regional certifications, thereby significantly reducing development costs, risks and time to market. A variety of standard and advanced peripheral devices can enable interaction with other system components as well as the development of advanced user interfaces and multi-functional applications.

Core features

Dual-core: 64MHz Cortex-M33F as the application core, and 64MHz Cortex-M0+ as the configurable MAC

Receiving sensitivity: -97dBm, transmission: +5.5dBm

96kB RAM (+16kB cache), 256kB flash memory, 288kB ROM (including stack), QSPI external flash memory /RAM expansion

8-channel, 15 Sigma-Delta ADC

Power consumption: RadioRx = 1.2mA, RadioTx = 2.3mA, active = 34uA/MHz, sleep <100nA

Four-decoder support for 3 axes (active in sleep mode)

RTC with a resolution of 10ms

18mm x 14mm x 2.5mm package (with toothed pins for easy prototyping)

Typical application fields

Crowdsourcing location tracking

Asset tracking

"Interconnected Health"

Human-machine interface equipment

Activity tracker

Data logger

PoS card reader

Measuring instrument

High-end voice RCU

Internet of Things terminal node

Toys
