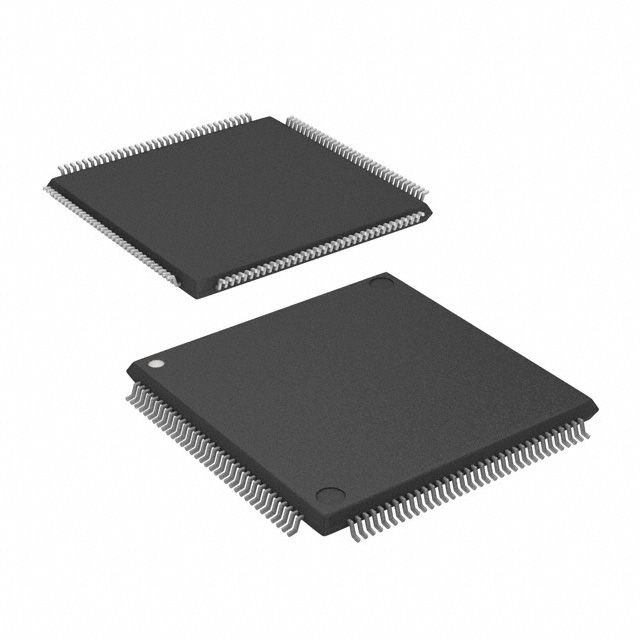

AT32UC3C0256C-ALUR is a complete System-On-Chip microcontroller based on the AVR32 UC RISC processor running at frequencies up to 84MHz. AVR32 UC is a high-performance 32-bit RISC microprocessor core, designed for cost-sensitive embedded applications, with particular emphasis on low power consumption, high code density and high performance.

Features

High Performance, Low Power 32-bit AVR Microcontroller

Compact Single-cycle RISC Instruction Set Including DSP Instruction Set

Buitin Floating-Point Processing Unit (FPU)

Read-Modify-Write Instructions and Atomic Bit Manipulation

Performing 1.49 DMIPS 1 MHz

Up to 91 DMIPS Running at 66 MHz from Flash (1 Wait: State)

Up to 49 DMIPS Running at 33 MHz from Flash (0 Wait: State)

Memory Protection Unit

Multi-hierarchy Bus System

-High-Performance Data Transfers on Separate Buses for Increased Performance

16 Peripheral DMA Channels Improves Speed for Peripheral Communication

Internal High-Speed Flash

512 Kbytes, 256 Kbytes, 128 Kbytes, 64 Kbytes Versions

Single Cycle Access up to 33 MHz

FlashVault" Technology Allows Pre-programmed Secure Library Support for End

User Applications

Prefetch Buffer Optimizing Instruction Execution at Maximum Speed

100,000 Write Cycles, 15-year Data Retention Capability

Flash Security Locks and User Defined Configuration Area

Internal High Speed SRAM, Single-Cycle Access at Full Speed

64 Kbytes (512 KB and 256 KB Flash), 32 Kbytes (128 KB Flash), 16 Kbytes (64KB Flash)

4 Kbytes on the Multi-Layer Bus System (HSB RAM)

External Memory Interface on AT32UC3C0 Derivatives

SDRAM 1 SRAM Compatible Memory Bus (16-bit Data and 24-bit Address Buses)

Interrupt Controller

Autovectored Low Latency Interrupt Service with Programmable Priority

System Functions

Power and Clock Manager

Internal 115KHz (RCSYS) and 8MHz/1MHz (RC8M) RC Oscillators

One 32 KHz and Two Multipurpose oscillators

Clock Failure detection

Two Phase-Lock-Loop (PLL) allowing Independent CPU Frequency from USB or

CAN Frequency

Windowed Watchdog Timer (WDT)

Asynchronous Timer (AST) with Real-Time Clock Capability

Counter or Calendar Mode Supported

Frequency Meter (FREQM) for Accurate Measuring of Clock Frequency

Ethernet MAC 10/100 Mbps interface
